Machine Overview

Specs:
Bar Capacity: 3"
Chuck Size: 12"
Spindle Speed: 3,400 RPM
Spindle Motor: 40 HP
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 21"
Max Turning Length: 26"
Max Swing: 31"
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-8
Max Torque: 300 ft-lbf
Spindle Bore: 3.5"
Coolant Cap: 55 gal
Dimensions: 171" x 90" x 98"
Options:
Chip Conveyor
Tailstock
12-inch Hydraulic Chuck
3400 RPM Spindle – Gear Drive
Oil Separator
Rigid Tapping Function
Includes boring and external turning tool holders
Description:

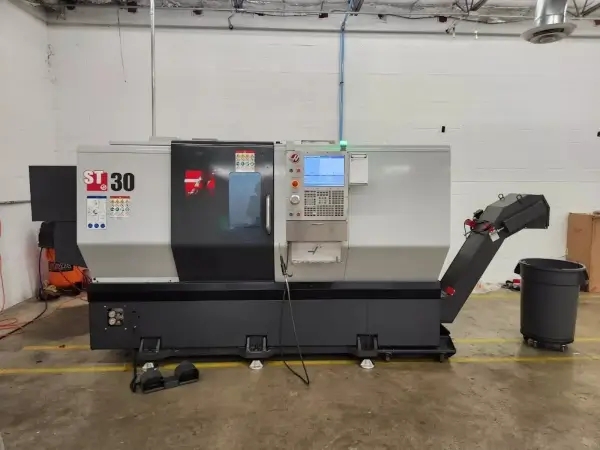

This 2018 HAAS ST30 is a real standout! Equipped with an array of options, this tailstock is an upgrade from your ordinary machine tools. The HAAS ST30 has been built with focus on high-performance and sturdy design, recognized globally for its finesse in guaranteeing precise operations. This machine promises to be a useful companion for your production operations.


Enhanced with a robust tailstock, it allows easy control and operation. This option allows for a much broader range of applications than your standard models. The tailstock is a notable feature, bringing added ability to control and manage the output quality. Paying close attention to detail in ensuring uniform, quality product, it truly makes the HAAS ST30 a versatile machine. This characteristic is a testament to HAAS's commitment to delivering on functionality and precision.


Bearing the HAAS mark, a respected name in the industry, the ST30 has been developed with the user in mind. With its simple and user-friendly design, it is a machine that demands less effort from the operator, while still achieving good results. Built to last, it stands the test of time. Hence, the ST30 is a solid investment into your company's future.


Consider the HAAS ST30 2018, with its robust tailstock option, for your machining needs. A great add-on to any workshop or manufacturing environment, the HAAS ST30 ensures that operations run smoothly. Even though it is a used model, it holds up well. So don't wait! Grab this grand machine at a great price before it's too late!
