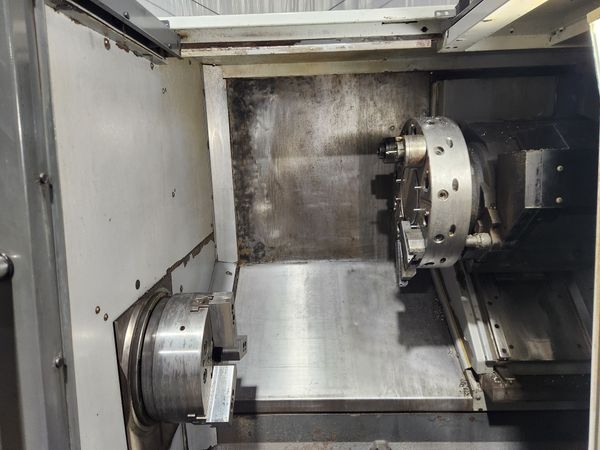

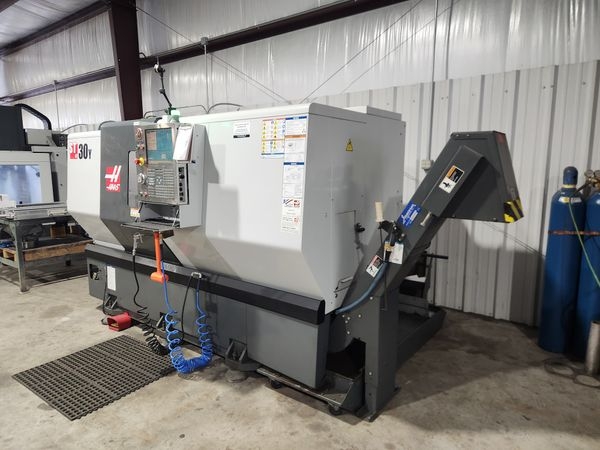

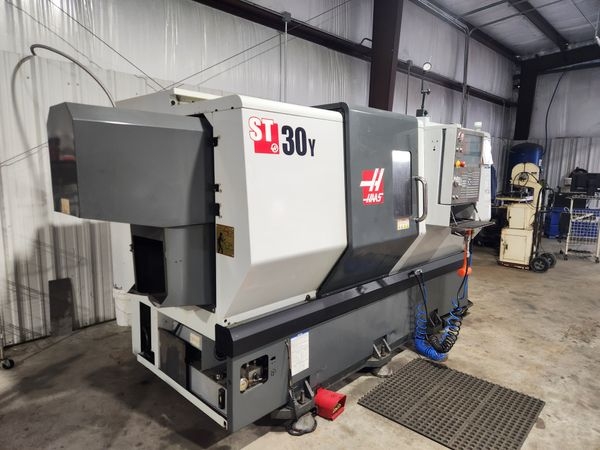

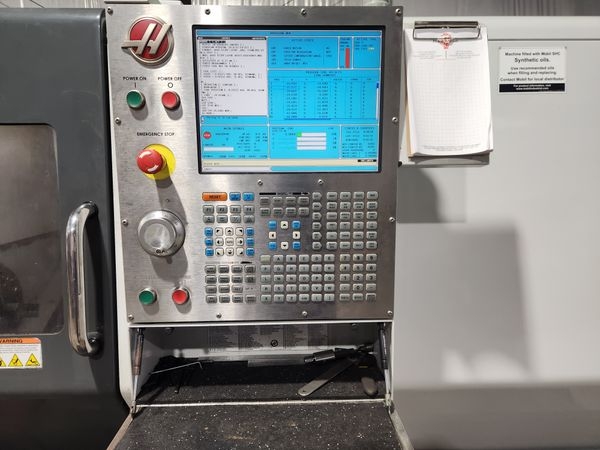

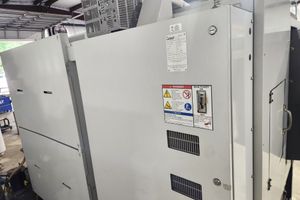

Pre-owned HAAS ST30Y 2011 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. ...Read More
Specs:
Bar Capacity: 3"

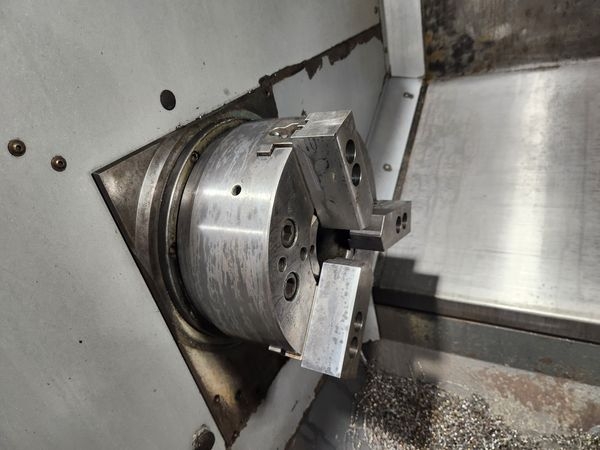

Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 945 IPM

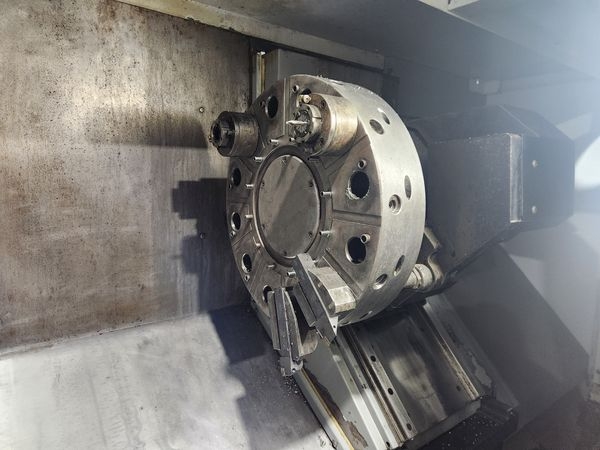

Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 31.75"
Max Thrust X 4100 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Max Rating 30 hp
Max Speed 3400 rpm
Max Torque 300 ft-lbf
Max Torque 1000 ft-lbf
LIVE TOOLING:
Max Rating 5 hp
Positioning (±) 0.01 °
Brake Force 1,000 lbf
Brake Diameter 14.4"
Number of Tools 12 Stations Live
Max Speed 4000 rpm
Tooling BMT65
Weight: 14,300 LBS
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 31.75"
Max Thrust X 4100 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Max Rating 30 hp
Max Speed 3400 rpm
Max Torque 300 ft-lbf
Max Torque 1000 ft-lbf
LIVE TOOLING:
Max Rating 5 hp
Positioning (±) 0.01 °
Brake Force 1,000 lbf
Brake Diameter 14.4"
Number of Tools 12 Stations Live
Max Speed 4000 rpm
Tooling BMT65
Weight: 14,300 LBS
Options:
HAAS CNC Control
Chip Conveyor
Live Tooling
Y Axis
Chip Conveyor
Live Tooling
Y Axis
