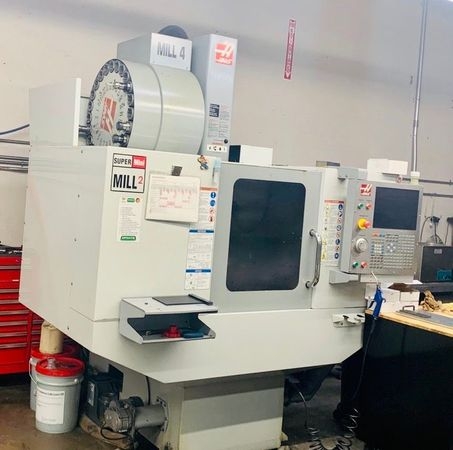

Used HAAS SUPER MINI MILL 2 Vertical Machining Center
Specifications:
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 14"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Table Size: 40"x14"
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24+1 SMTC ATC
Max Cutting 833 IPM
Direct Drive Belt Drive
Spindle Nose to Table 4-18"
Dimensions: 91x88x,100
Weight: 5,100 LBS
LOW Hours (see photos)
Y Axis Travel: 16"
Z Axis Travel: 14"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Table Size: 40"x14"
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24+1 SMTC ATC
Max Cutting 833 IPM
Direct Drive Belt Drive
Spindle Nose to Table 4-18"
Dimensions: 91x88x,100
Weight: 5,100 LBS
LOW Hours (see photos)
Equipped With:
Haas CNC Control
Probe
Programmable Coolant
Chip Auger
Side Mount Tool Changer 24+1
Wireless Intuitive Probing (WIPS) Renishaw
Vices pictured not included
High Speed Machining (HSM)
16 MB Expanded Memory
15,000 RPM Motor
Rigid Tapping
Coordinate Rotating & Scaling
Macros
M19 Spindle Orientation P and R code
Intuitive Programming System
Probe
Programmable Coolant
Chip Auger
Side Mount Tool Changer 24+1
Wireless Intuitive Probing (WIPS) Renishaw
Vices pictured not included
High Speed Machining (HSM)
16 MB Expanded Memory
15,000 RPM Motor
Rigid Tapping
Coordinate Rotating & Scaling
Macros
M19 Spindle Orientation P and R code
Intuitive Programming System
