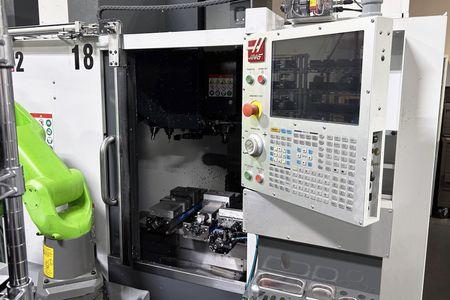

M5 - HAAS SUPER MINI MILL 2 2011 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS Ver...Read More
Rigging:
$1,400
Specs:
Table Size: 40" x 14"
Max Table Load: 500 LBS
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 14"
Spindle Nose to Table Top: 4" - 18"
Spindle Speed: 10,000 RPM
Spindle Taper: CAT40
Spindle Motor: 15 HP
Tool Changer Positions: 24 + 1 Positions
Tool Changer Style: Sidemount
40 Gallon Coolant Tank
Dimensions: 91" x 88" x 100"
Weight: 5,100 LBS
Max Table Load: 500 LBS
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 14"
Spindle Nose to Table Top: 4" - 18"
Spindle Speed: 10,000 RPM
Spindle Taper: CAT40
Spindle Motor: 15 HP
Tool Changer Positions: 24 + 1 Positions
Tool Changer Style: Sidemount
40 Gallon Coolant Tank
Dimensions: 91" x 88" x 100"
Weight: 5,100 LBS
Options:
HAAS CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
HA5C-T 4th Axis 5C Indexer
4th Axis Drive
Visual Part Programming System
Ethernet
W.I.P.S. Wireless Probe System
WiFi
Early Power Failure Detection Module
M-Code
User-Definable Macros Coordinate Rotation and Scaling
Spindle Orientation
1GB Memory
Rigid Tapping
Probe
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
HA5C-T 4th Axis 5C Indexer
4th Axis Drive
Visual Part Programming System
Ethernet
W.I.P.S. Wireless Probe System
WiFi
Early Power Failure Detection Module
M-Code
User-Definable Macros Coordinate Rotation and Scaling
Spindle Orientation
1GB Memory
Rigid Tapping
