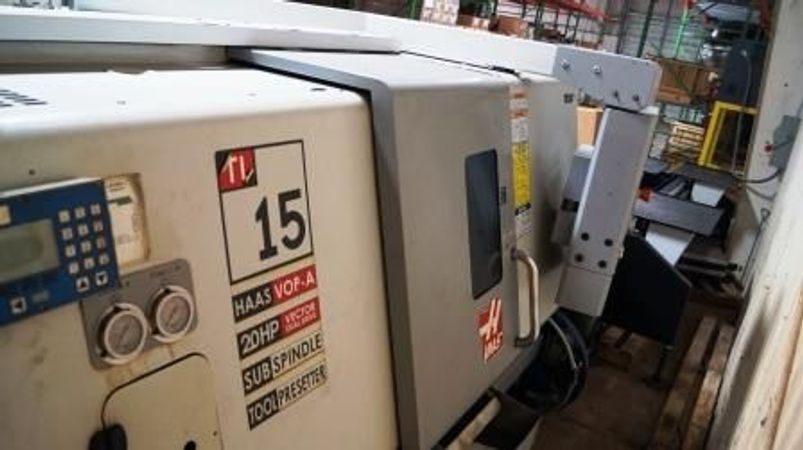

Pre-owned HAAS TL15 2005 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Haas CNC Control control. This CNC Machine is currently located in Alabama. This HAAS CNC Lathe is available for a limited time. Get a quote today on this TL15 before it's gone.
Notify Me:
Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.5"
Z Axis Travel: 17.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 8.2"
Max Turning Length: 21.65"
Max Swing: 21.65"
More Travels:
B Axis Sub Spindle Travel: 17.90?
C Axis: 360° (0.001°) Both Spindle
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Main Spindle Bore: 2.0?
Sub Spindle Bore: 1.18?
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Speed: 45-4000 RPM
Sub Spindle Speed: 40-4000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 8 HP
Turret:
Turret Capacity: 12 Live Stations
Turret Index Time: .2 Second
Dimensions: 138? x 77? x 72?
Weight: 10,500 LBS
Chuck Size: 8"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.5"
Z Axis Travel: 17.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 8.2"
Max Turning Length: 21.65"
Max Swing: 21.65"
More Travels:
B Axis Sub Spindle Travel: 17.90?
C Axis: 360° (0.001°) Both Spindle
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Main Spindle Bore: 2.0?
Sub Spindle Bore: 1.18?
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Speed: 45-4000 RPM
Sub Spindle Speed: 40-4000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 8 HP
Turret:
Turret Capacity: 12 Live Stations
Turret Index Time: .2 Second
Dimensions: 138? x 77? x 72?
Weight: 10,500 LBS
Options:
Haas CNC Control
Chip Conveyor
Tool Presetter
Sub Spindle
Chip Conveyor
Tool Presetter
Sub Spindle
