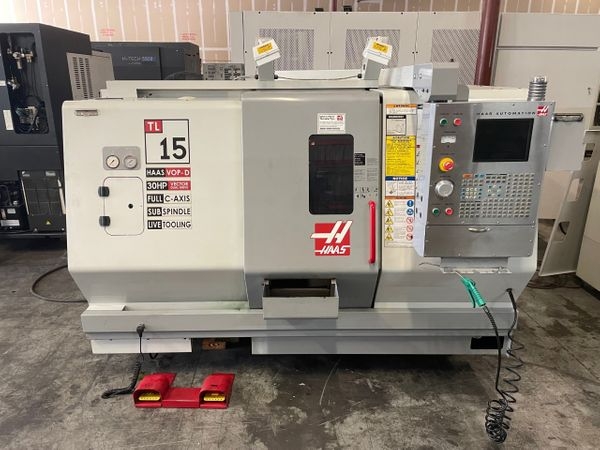

HAAS TL15 CNC Lathe

Machine has been sold

Pre-owned HAAS TL15 2005 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. Get a quote t...Read More

Notify Me:
Get notified when a similar machine is listed
Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.5"
Z Axis Travel: 17.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 8.2"
Max Turning Length: 21.65"
Max Swing: 21.65"
More Travels:
B Axis Sub Spindle Travel: 17.90?
C Axis: 360° (0.001°) Both Spindle
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Main Spindle Bore: 2.0"
Sub Spindle Bore: 1.18"
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Speed: 45-4000 RPM
Sub Spindle Speed: 40-4000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 8 HP

Turret:
Turret Capacity: 12 Live Stations
Turret Index Time: .2 Second
Dimensions: 138" x 77" x 72"
Weight: 10,500 LBS
Options:
HAAS CNC Control
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Chip Auger
Tool Eye Presetter
Rigid Tapping
Airblast
Spindle Orientation
(2) Standard 3 Jaw Chucks Included
(2) Collet Chuck
