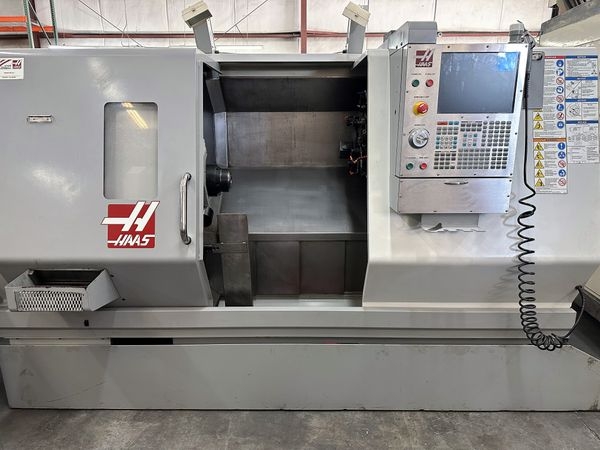

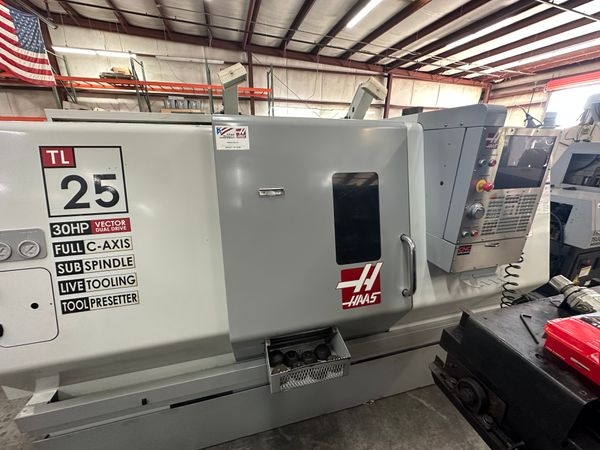

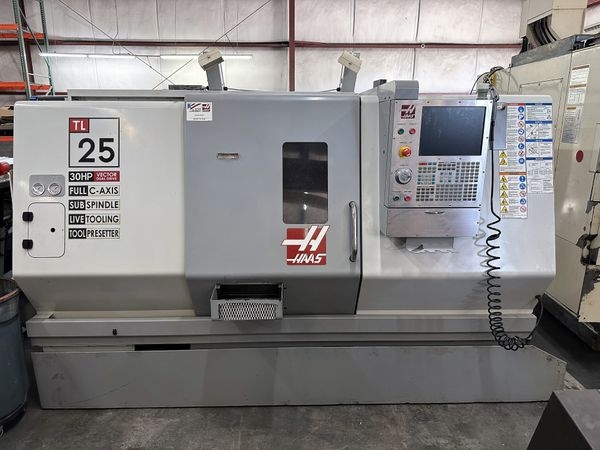

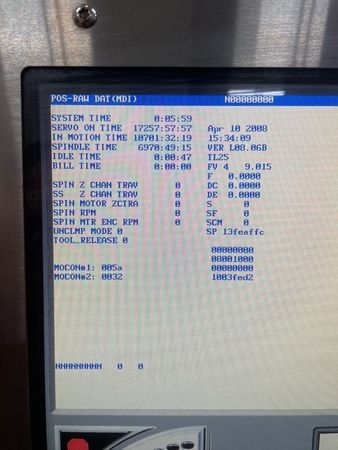

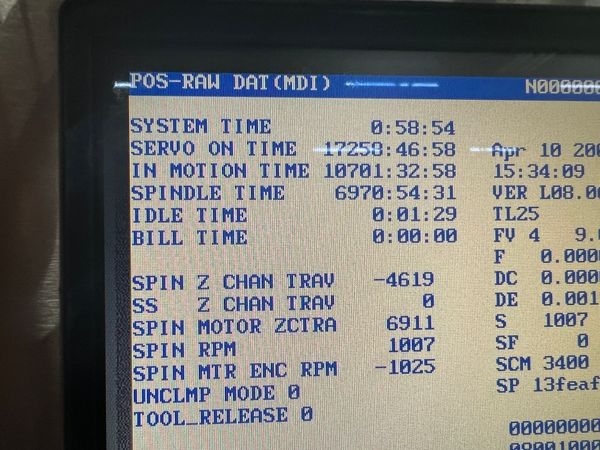

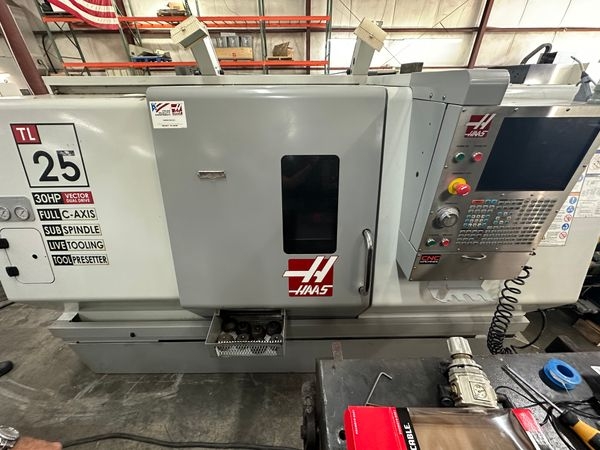

This 2006 HAAS TL25 Twin spindle with live tooling CNC Lathe comes fully equipped for lights out manufacturing. This 4 Axis CNC Live tool Lathe has below average cutting time with only 6,978 cut hours and is e...Read More
Rigging:
Free
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 11.3"
Z Axis Travel: 34.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 16"
Max Turning Length: 34"
Max Swing: 30"
Dimensions: 190" x 90" x 90"
Weight: 16,800 LBS

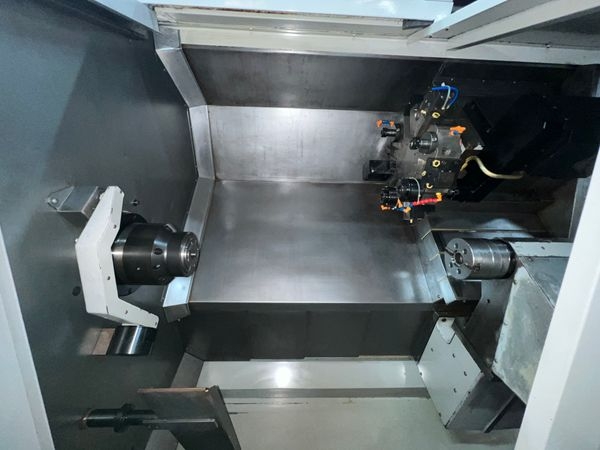

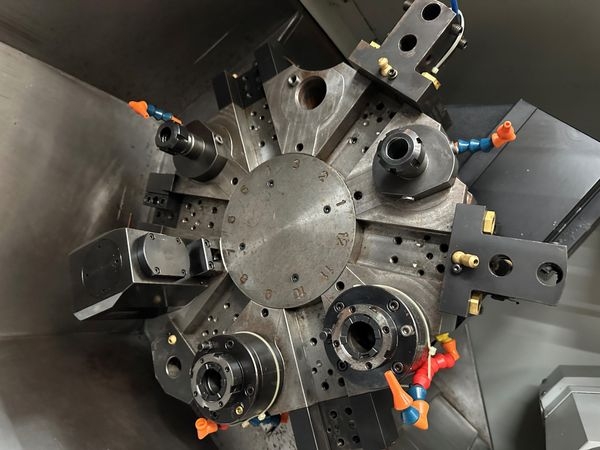

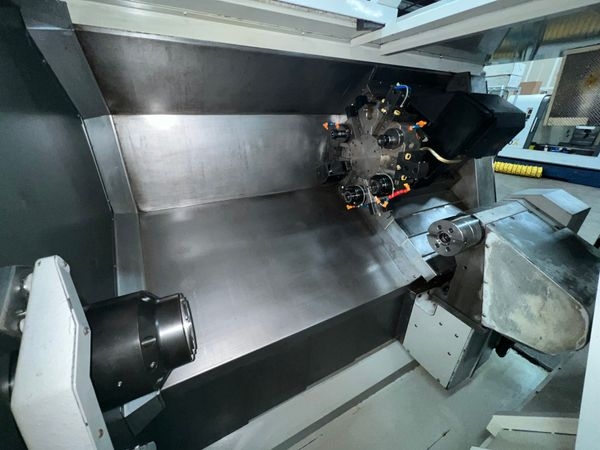

LIVE TOOLING:
Turret Capacity: 12 Live Stations
Turret Index Time: 0.2 Second
Live Tool Speed: 3,000 RPM
C Axis: 360°

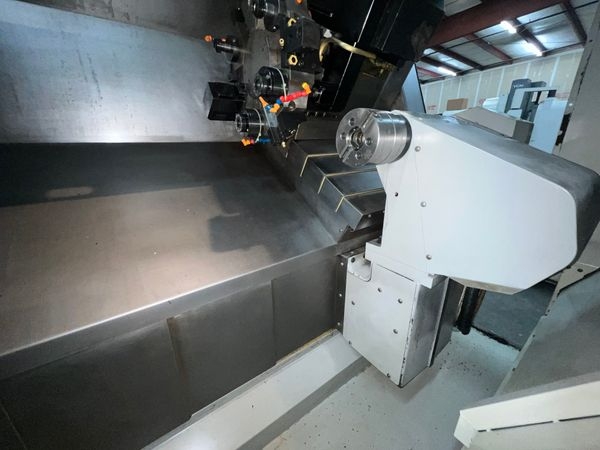

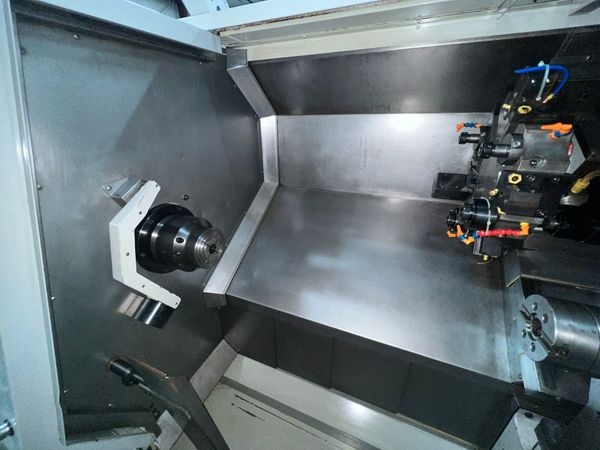

SUB SPINDLE:
Sub Spindle Bore: 1.18"
Sub Spindle Nose: A2-6
Sub Spindle Speed: 4000 RPM
Sub Spindle Power: 8 HP
Chuck on Sub Spindle: 5"
C Axis: 360°
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 11.3"
Z Axis Travel: 34.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 16"
Max Turning Length: 34"
Max Swing: 30"
Dimensions: 190" x 90" x 90"
Weight: 16,800 LBS
LIVE TOOLING:
Turret Capacity: 12 Live Stations
Turret Index Time: 0.2 Second
Live Tool Speed: 3,000 RPM
C Axis: 360°
SUB SPINDLE:
Sub Spindle Bore: 1.18"
Sub Spindle Nose: A2-6
Sub Spindle Speed: 4000 RPM
Sub Spindle Power: 8 HP
Chuck on Sub Spindle: 5"
C Axis: 360°
Options:
HAAS CNC Control

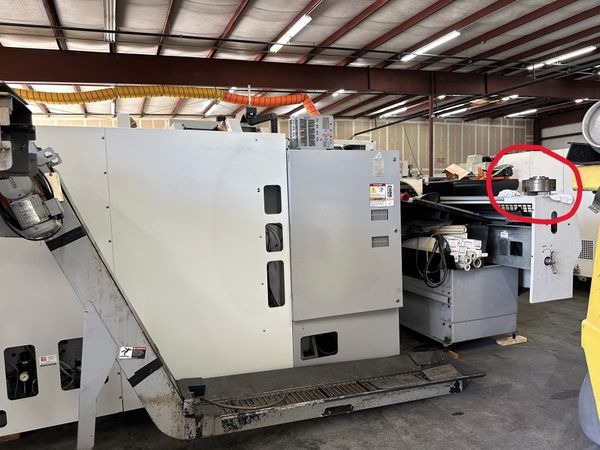

Chip Conveyor
Tool Presetter

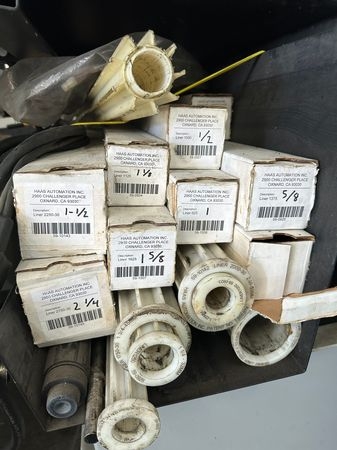

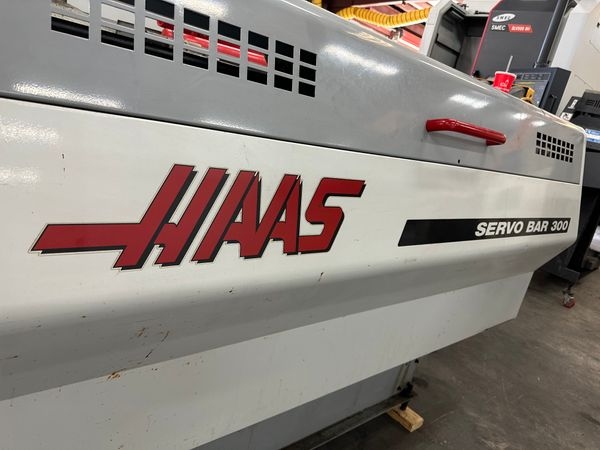

Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle

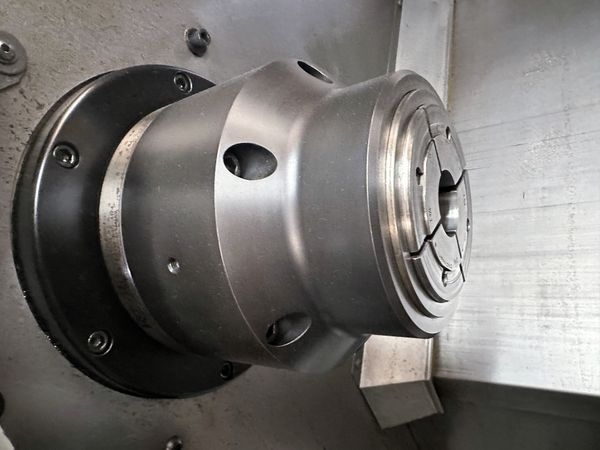

Royal Collet Chuck Included
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Royal Collet Chuck Included
