Reserve Met: HAAS TR160-2 Tooling and Workholding

PLATTER:
Platter Diameter 6.3"
Max Weight on Platter 80 lbs
Part Swing Max 10.5"
Number of Std T-Slots 6

SPINDLE: A Axis Tilt
Max Speed 80 °/sec
Max Torque 150 ft-lb
Backlash 30 sec
Gear Ratio 63:1
Timing 2:1
Max Rotation ± 120 °
Resolution 0.001 °

SPINDLE: B Axis Rotary
Number 2 Platers
Max Speed 80 °/sec
Max Torque 100 ft-lbs
Backlash 30 arc-sec
Gear Ratio 63:1
Timing 2:1
Brake Torque @ 100 psi/6.9 bar


DIMENSIONS
Export Crate 49 in x 21 in x 25 in
Weight 575 lbs

Brake Torque @ 100 psi/6.9 bar 200 ft-lbf

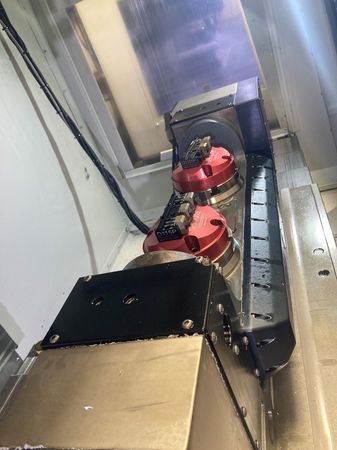

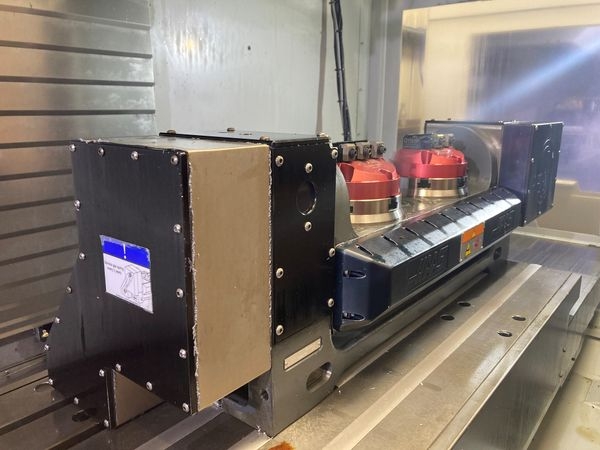

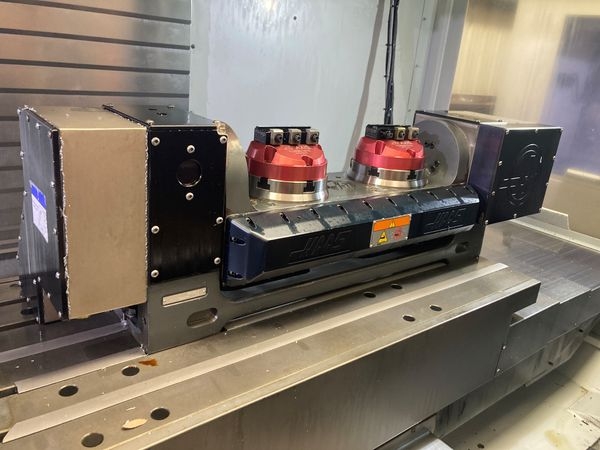

Update your 4th and 5th axis CNC capabilities to your Haas machine. This Haas Trunnion has dual spindles for increased productivity with max weight per platter: 80 lbs. Easy plug-and-play connection to Haas machines offering Industry performance and capabilities. Haas 5 Axis tables are Made in the USA

MFG date 10/2017
Rebuild in 2021 by Haas Automation

5 Axis
2x Plats for 2x Parts
Rebuilt by Haas
