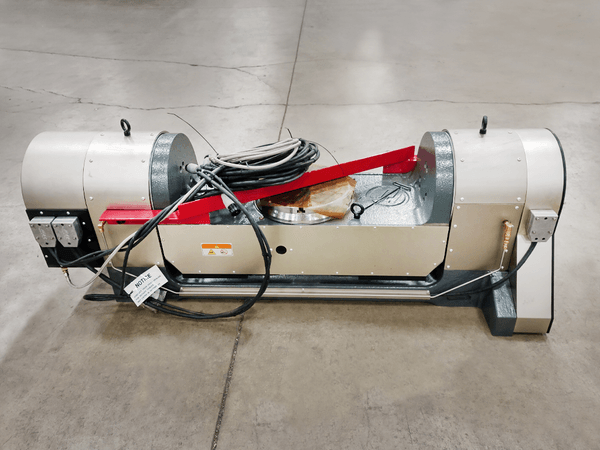

Introducing a 2018 HAAS TR310 Tooling and Workholding Product Listing For those in the manufacturing and machining industries, having the right tooling and workholding equipment is essential to maintaining high standards and ...Read More
Notify Me:
Specs:
PLATTER
Platter Diameter: 12.2"
Max Weight on Platter 500 lbs
Part Swing Max 31"
Number of Std T-Slots 6
A AXIS
Max Speed 50 sec
Max Torque 300 ft-lbs
Gear Ratio 72:1
Timing 3:1
Brake Torque @ 100 psi/6.9 bar
B AXIS
Max Speed 50 sec
Max Torque 300 ft-lbs
Runout Max 0.0010"
Gear Ratio 72:1
Timing 3:1
Brake Torque @ 100 psi/6.9 bar
Export Crate 70" x 30" x 34"
Weight 2,105 lbs
Platter Diameter: 12.2"
Max Weight on Platter 500 lbs
Part Swing Max 31"
Number of Std T-Slots 6
A AXIS
Max Speed 50 sec
Max Torque 300 ft-lbs
Gear Ratio 72:1
Timing 3:1
Brake Torque @ 100 psi/6.9 bar
B AXIS
Max Speed 50 sec
Max Torque 300 ft-lbs
Runout Max 0.0010"
Gear Ratio 72:1
Timing 3:1
Brake Torque @ 100 psi/6.9 bar
Export Crate 70" x 30" x 34"
Weight 2,105 lbs
