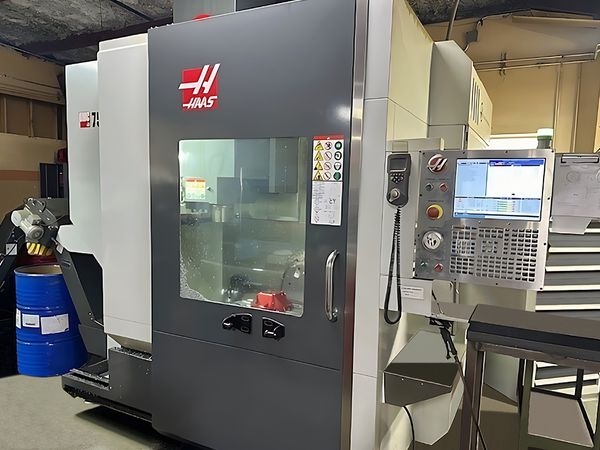

Pre-owned HAAS UMC750SS 2017 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas Next Gen CNC Control control. This CNC Machine is currently located in California. Th...Read More
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Max Cutting 650 ipm
Spindle Nose to Platter 4" -24"
Max Torque 90 ft-lbf
Platter Diameter 19.7"
Max Weight on Platter 660 lb
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf
Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
B AXIS: ROTATION
Travel 120 ° to 35- °
Max Speed 150 °/sec
Max Torque 1200 ft-lbf
Brake Torque 4300 ft-lbf
C AXIS: ROTATION
Travel 360 °
Max Speed 150 °/sec
Max Torque 450 ft-lbf
Brake Torque 3300 ft-lbf
Max Swing 27"
Table Size: 19.7" x 19.7"
Weight: 19,100 LBS
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Max Cutting 650 ipm
Spindle Nose to Platter 4" -24"
Max Torque 90 ft-lbf
Platter Diameter 19.7"
Max Weight on Platter 660 lb
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf
Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
B AXIS: ROTATION
Travel 120 ° to 35- °
Max Speed 150 °/sec
Max Torque 1200 ft-lbf
Brake Torque 4300 ft-lbf
C AXIS: ROTATION
Travel 360 °
Max Speed 150 °/sec
Max Torque 450 ft-lbf
Brake Torque 3300 ft-lbf
Max Swing 27"
Table Size: 19.7" x 19.7"
Weight: 19,100 LBS
Options:
Haas Next Gen CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
5 Axis
15k RPM Spindle
Through Spindle Coolant 1000psi
Auxiliary Coolant Filter
Cabinet Cooler
Macros, Rotation and Scaling
Dynamic Work Offsets
Spindle Orientation
High Speed Machining
64 GB Memory
VPS Editing
Compensation Tables
Rigid Tapping
Remote Jog Handle
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
5 Axis
15k RPM Spindle
Through Spindle Coolant 1000psi
Auxiliary Coolant Filter
Cabinet Cooler
Macros, Rotation and Scaling
Dynamic Work Offsets
Spindle Orientation
High Speed Machining
64 GB Memory
VPS Editing
Compensation Tables
Rigid Tapping
Remote Jog Handle
