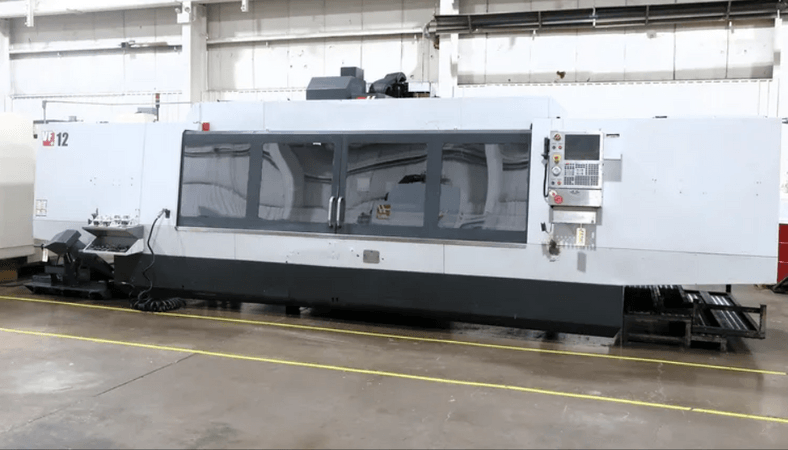

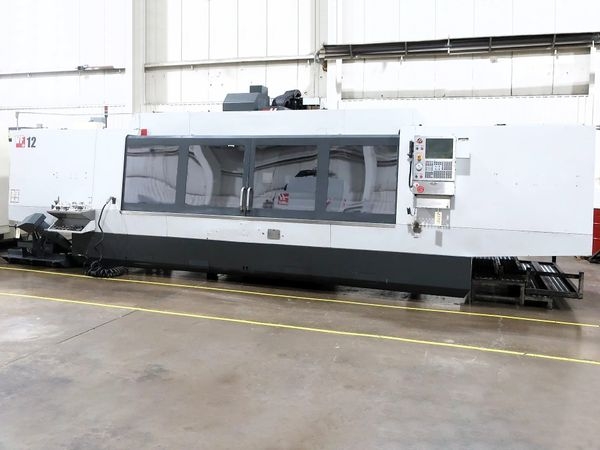

Pre-owned HAAS VF12 2014 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Illinois. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF12 before it's gone.
Seller Needs:
Payment:
Specs:
X Axis Travel: 150"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size:
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Max Cutting: 360 ipm
Max Torque: 90 ft-lbf
Max Thrust X: 3400 lbf
Max Thrust Y: 3400 lbf
Max Thrust Z: 5600 lbf
Max Tool Length: 16"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Dimensions:
Weight: 37,200 LBS
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Table Size:
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Max Cutting: 360 ipm
Max Torque: 90 ft-lbf
Max Thrust X: 3400 lbf
Max Thrust Y: 3400 lbf
Max Thrust Z: 5600 lbf
Max Tool Length: 16"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Dimensions:
Weight: 37,200 LBS
Options:
HAAS CNC Control
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
Haas HRT-210 4th Axis Rotary Table
Chip Auger
WIPS wired with receiver
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
Haas HRT-210 4th Axis Rotary Table
Chip Auger
WIPS wired with receiver
