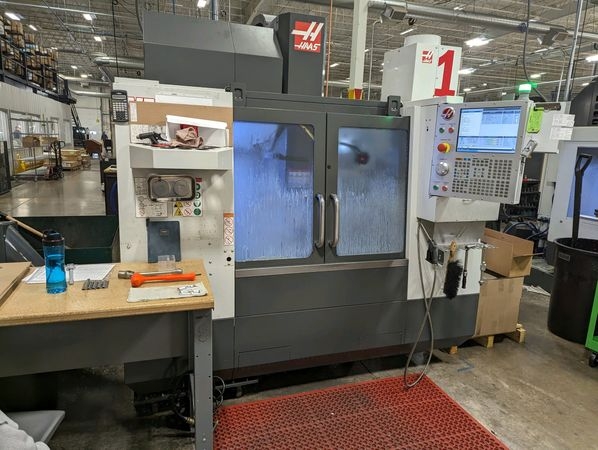

On offer is a high-performing and sophisticated 2018 HAAS VF2SS Vertical Machining Center. This impressive piece of machinery initially commanded a price tag of $105,550 and is among the top-tier vertical machining centers av...Read More
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Weight: 7,800 LBS

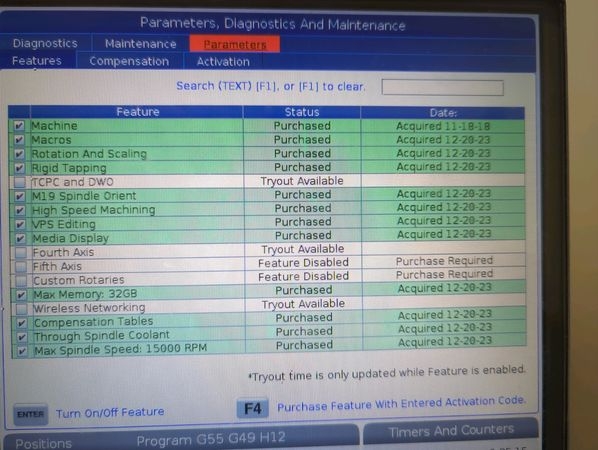

Options:
Haas Next Gen CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
15k RPM Spindle
Pre Wired for 4th Axis
Macros, Rotation and Scaling
Rigid Tapping
High Speed Machining
Spindle Oreintation
32GB Memory
Compensation Tables
Probe
Coolant Thru Spindle
Programmable Coolant
15k RPM Spindle
Pre Wired for 4th Axis
Macros, Rotation and Scaling
Rigid Tapping
High Speed Machining
Spindle Oreintation
32GB Memory
Compensation Tables
