Machine Overview

Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Weight: 7,800 LBS
Options:
Haas Next Gen CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
Wireless Intuitive Probing System
Through Coolant Spindle 300 psi
4th Axis Wiring
High Speed Machining
15,000 RPM Upgraded Spindle
Side Mount Tool Changer
Chip Conveyor
Auxiliary Coolant Filter System
HRT210 Rotary Table (Available)

Description:

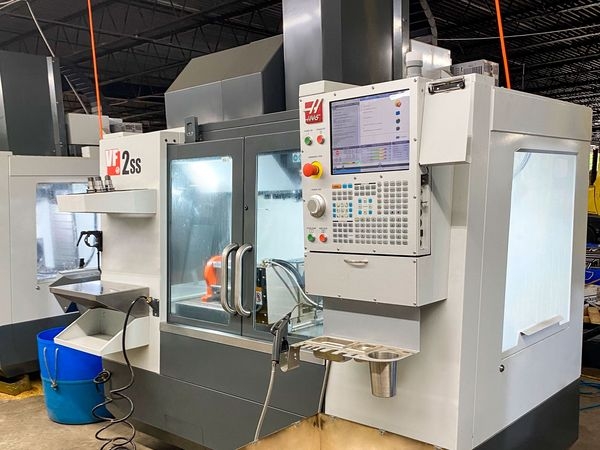

Introducing a gently used 2021 HAAS VF2SS Vertical Machining Center that has been expertly maintained to ensure optimal performance and longevity. This versatile and robust machine features an array of options and upgrades to improve machining capabilities and productivity, providing an ideal solution for businesses ranging from small job shops to large-scale manufacturing facilities. Don't miss the opportunity to add this incredible piece of equipment to your production floor. Built with the operator's ease-of-use in mind, this HAAS VF2SS Vertical Machining Center is equipped with a state-of-the-art wireless intuitive probing system that allows for quick and easy part and tool setup. The integrated probe ensures precise measurements and eliminates the need for manual touch-offs, providing increased accuracy and reducing setup time. To further enhance functionality and keep your operation running smoothly, the machine features a high-pressure coolant system, capable of delivering up to 300 psi through the spindle. This advanced system not only improves cutting performance and extends tool life but also reduces cycle times by minimizing the need for manual coolant adjustments. The programmable coolant nozzle allows for customizable, optimized coolant delivery during the machining process. Designed for high-speed precision cutting and multi-axis machining, this HAAS VF2SS Vertical Machining Center features an upgraded 15,000 RPM spindle, offering faster cutting speeds and better surface finishes. The machine is also 4th axis-ready, with wiring pre-installed for hassle-free integration of a rotary table when needed. The included HRT210 Rotary Table (available) provides precise rotation and added versatility for more complex operations. The HAAS VF2SS Vertical Machining Center comes with a side mount tool changer, boasting a quick-change setup for minimized downtime and increased productivity, while the included chip conveyor ensures easy clean-up for maximum operational efficiency, keeping your workspace cleaner and safer. To extend coolant life and maintain the overall health of the machine, an auxiliary coolant filter system is included with this HAAS VF2SS Vertical Machining Center. This system efficiently removes solid particles from the coolant, ensuring consistent coolant flow and keeping your machine running at peak performance. In summary, this 2021 HAAS VF2SS Vertical Machining Center provides a comprehensive and versatile solution for your machining needs. The ample options and upgrades, attention to detail in design, and expert maintenance make this machine an ideal choice for any shop seeking to improve productivity and precision. Don't let this opportunity pass you by - contact us today to make this fantastic machine a part of your production floor.
