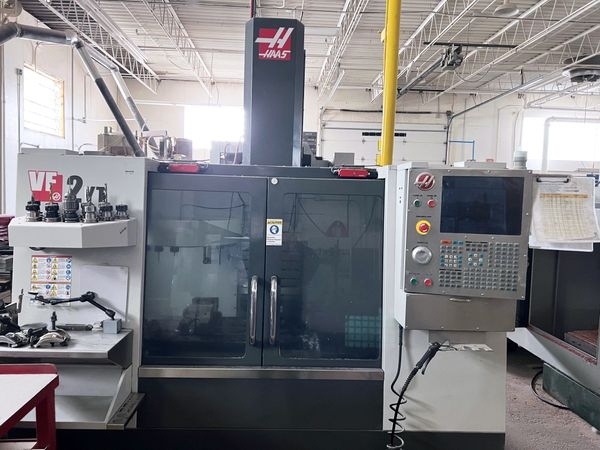

Pre-owned HAAS VF2YT 2012 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Wisconsin. This HAAS Verti...Read More
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 20 ATC
Max Torque: 90 ft-lbf
Max Cutting: 650 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs
Tool-to-Tool: 4.5 s
Chip-to-Chip: 4.5 s
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 20 ATC
Max Torque: 90 ft-lbf
Max Cutting: 650 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs
Tool-to-Tool: 4.5 s
Chip-to-Chip: 4.5 s
Options:
HAAS CNC Control
Probe
Chip Auger
Probe
Chip Auger
