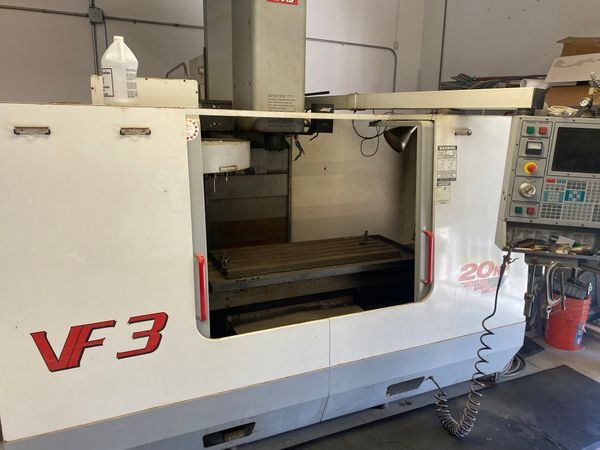

Pre-owned HAAS VF3D 2000 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in California and is availabl...Read More
Notify Me:
Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 48" X 18"
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Dimensions: 131" x 92" x 101"
Weight: 13,500 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 48" X 18"
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Dimensions: 131" x 92" x 101"
Weight: 13,500 LBS
Options:
HAAS CNC Control
Chip Conveyor
Programmable Coolant
Brushless Servos
1MB Extended Memory
Upgraded 32 ATC
4th Axis Ready
Coordinate Scaling
Rigid Tapping
Chip Conveyor
Programmable Coolant
Brushless Servos
1MB Extended Memory
Upgraded 32 ATC
4th Axis Ready
Coordinate Scaling
Rigid Tapping
