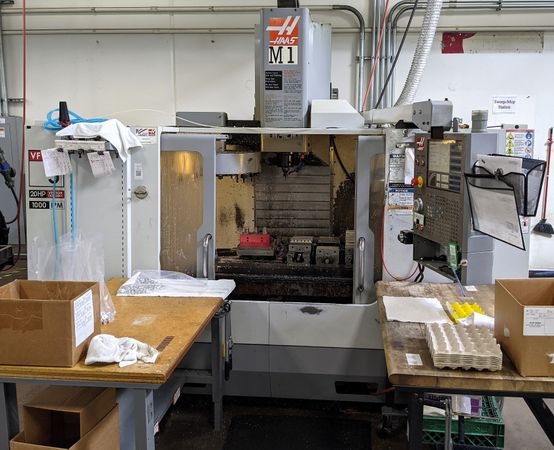

M1 - HAAS VF3D 2006 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center is ...Read More
Rigging:
$1,400
Specs:
Table Size: 48" X 18"
Max Table Load: 3,500 LBS
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Spindle Noe to Table Top: 4" - 29.2"
Spindle Speed: 7,500 RPM
Spindle Motor: 20 HP / Vector Drive
Spindle Taper: CAT40
Tool Changer Positions: 20 ATC
Tool Changer Style: Umbrella
Dimensions: 131" x 92" x 101"
Weight: 11,720 LBS
Max Table Load: 3,500 LBS
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Spindle Noe to Table Top: 4" - 29.2"
Spindle Speed: 7,500 RPM
Spindle Motor: 20 HP / Vector Drive
Spindle Taper: CAT40
Tool Changer Positions: 20 ATC
Tool Changer Style: Umbrella
Dimensions: 131" x 92" x 101"
Weight: 11,720 LBS
Options:

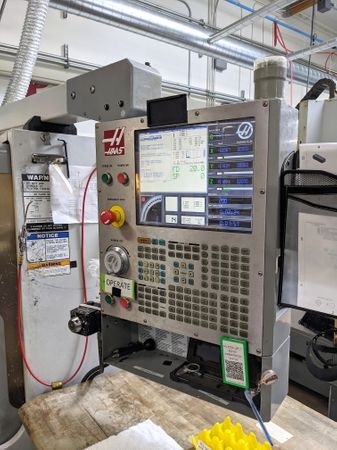

HAAS CNC Control
Probe
mfg 10/2006 Machine M1

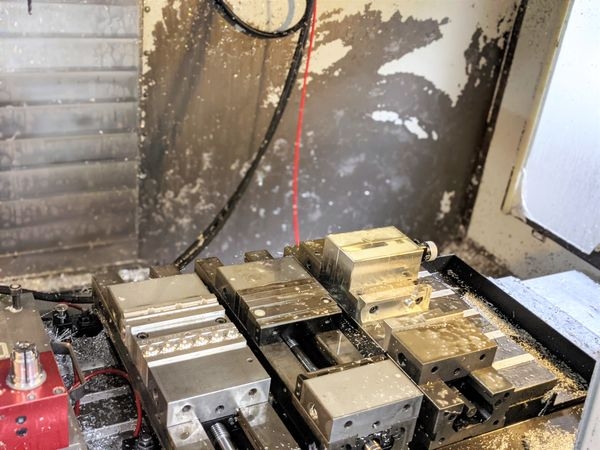

(1) Table Vice
Renishaw Wireless Probe
Tool Touch Probe

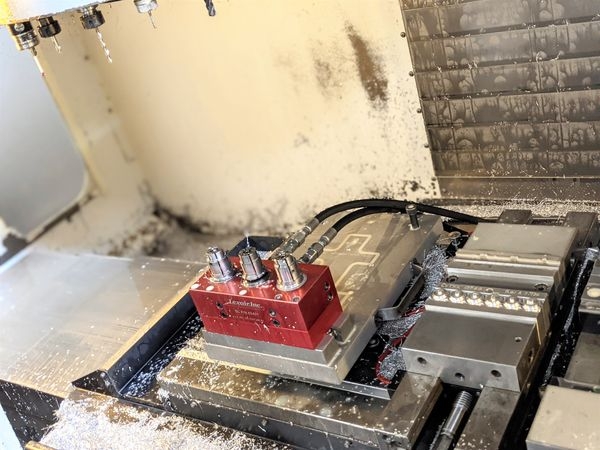

Lexair 5C Air Collet Trip Grip Closer
(10) Cat 40 Tool Holders
W.I.P.S Wireless Probe System
Spindle Orientation
User-Definable Macros
Coordinate Rotation and Scaling
Visual Part Programming System
Price New As Equipped: $76,290 USD

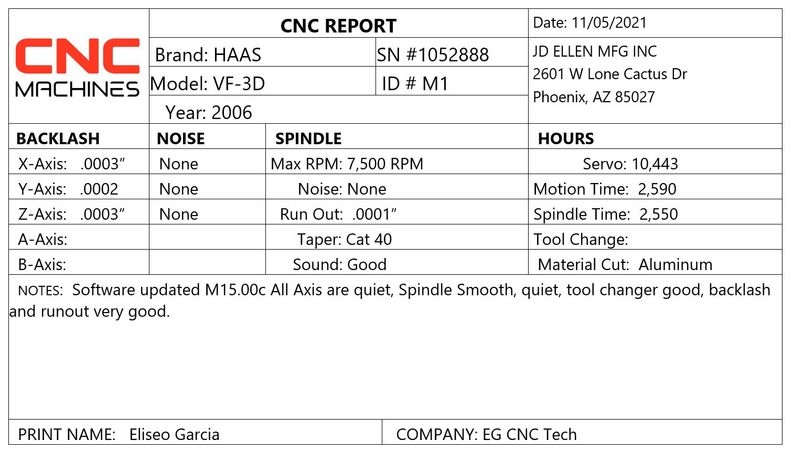

Condition Report coming (week of 11/1/2021)
Video Coming soon (week of 11/1/2021)
