HAAS VF3SS APC AI Chat
Loading ...

Machine Overview

Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 48" X 18"
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 40 ATC
Max Torque 90 ft-lbf
Max Cutting 450 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lbs
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Dimensions: 200 x 93 x 110
Weight: 13,500 LBS
Options:
HAAS CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
4 pallet change
40+1 Side Mount Tool Changer
4th Axis Rotary Table
High Intensity Lights
Automatic Tool Setter
Description:

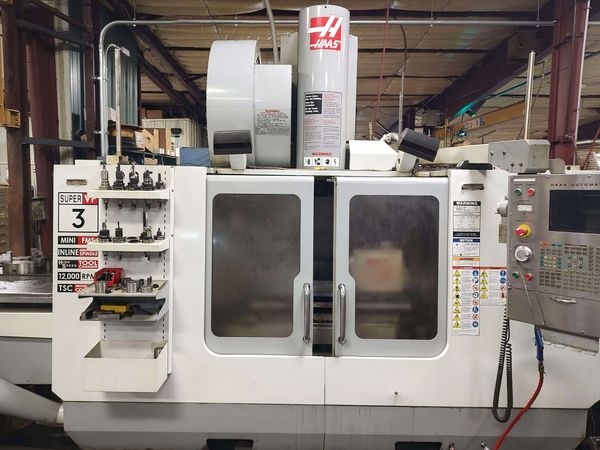

This 2005 HAAS VF3SS APC Vertical Machining Center is a well-equipped machine designed to handle a wide range of machining tasks with precision and speed. It is a great choice for those needing a machine capable of high-volume production and complex part machining.

Among its features, the machine includes a Probe system, which enhances its precision in complex tasks. It also comes with a Chip Conveyor to handle waste removal efficiently, keeping the workspace cleaner.

The Programmable Coolant feature allows for customization of coolant flow based on specific job needs, providing flexibility and control.

Adding to its functionality, this model includes a 4th Axis Rotary Table, expanding the machine's capacity to perform more complex tasks and intricate cutting details. The 4 pallet change feature increases production speed by allowing quick shifts between different workpieces without interrupting the machine's operations.

Equipped with a 40+1 Side Mount Tool Changer, the machining center reduces downtime by providing easy and quick access to a wide array of tools, accommodating a variety of operations without needing manual tool switches.

Visibility and monitoring during operation are enhanced with High Intensity Lights, allowing users to clearly see the machining process and ensure quality control throughout each step.

This HAAS VF3SS APC Vertical Machining Center stands out as a capable and resourceful choice for any shop looking to improve their machining capabilities and handle detailed work with ease.
