Machine Overview

Specs:
X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Thrust X 3085 lbf
Max Thrust Y 3085 lbf
Max Thrust Z 3923 lbf
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Table Size: 54" x 25"
Dimensions: 154" x 102" x 109"
Weight: 16,500 LBS
Description:

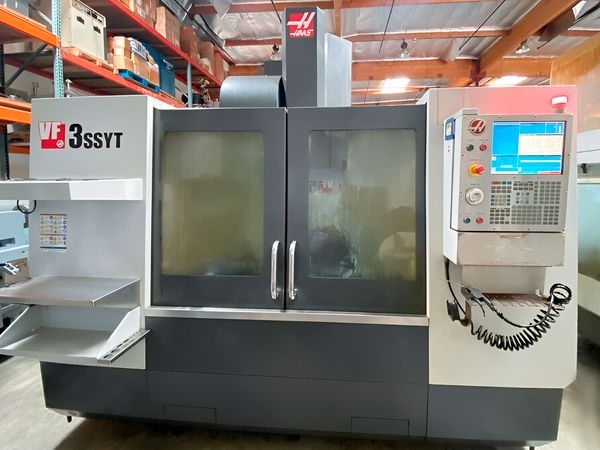

Located in California, we have a 2014 HAAS VF3SSYT Vertical Machining Center for immediate sale. This machining center, boasting HAAS CNC Control, is the heart of any shop floor. If you are in need of a machine that can handle a broad range of machining tasks with speed and precision, this may be the right option for you. The HAAS VF3SSYT offers an ample X, Y, and Z axis travel length of 40", 26", and 25" respectively. With these specifications, it provides the user with an expansive workspace, which enables machining of larger parts with ease. Its rapid rate for all three axes is 1,400 IPM – a speed that is bound to satisfy the requirements of fast-paced work environments. This vertical machining center comes with a robust table capable of handling a maximum load of 3,500 LBS. Thus, it can support workpieces of substantial weight without compromising on stability. One of the primary features of this 2014 HAAS VF3SSYT is its 30HP spindle motor running at speeds up to 12,000 RPM. The spindle has a taper of 40 CT, which is the standard size, allowing it to support a wide range of tool holders. Please note, however, that tool holders are not included in the sale of this machine. Additionally, this vertical machining center has a 24 ATC (Automatic Tool Change) system. Max cutting speed is a considerable 833 ipm, with thrust levels for X and Y axis both at 3085 lbf, and Z axis at 3923 lbf. Furthermore, it provides an average tool-to-tool time of 2.8 seconds and chip-to-chip of 3.6 seconds. The 2014 HAAS VF3SSYT comes with an expansive table size of 54" x 25". Its overall dimensions are 154" x 102" x 109", rendering it suitable for medium-to-large workshops. It does, however, carry a substantial weight of 16,500 LBS; hence you need to ensure your floor can handle such a load before installation. We encourage all interested individuals to evaluate their specific requirements and confirm the suitability of the HAAS VF3SSYT. This highly capable machining center is ready to meet your production needs. Please consider arranging a viewing to get firsthand knowledge of its value.
