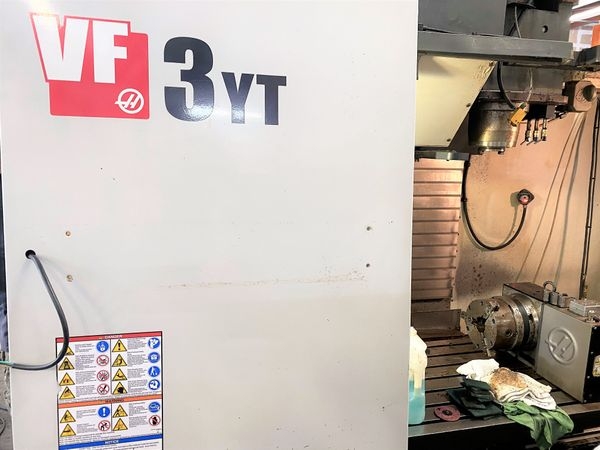

Used HAAS VF3YT-50 Vertical Machining Center
Pre-owned HAAS VF3YT-50 2013 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Louisiana. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF3YT-50 before it's gone.
Specs:
X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 54" x 24"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50 CT
Tool Changer: 30 ATC
Max Torque 340 ft-lbf
Drive System 2-Speed Gearbox
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Weight 30 lbs
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Dimensions: 156" x 102" x 121"
Weight: 16,500 LBS
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 54" x 24"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50 CT
Tool Changer: 30 ATC
Max Torque 340 ft-lbf
Drive System 2-Speed Gearbox
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Weight 30 lbs
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3 s
Dimensions: 156" x 102" x 121"
Weight: 16,500 LBS
Options:
HAAS CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
30+1 Side ATC
4th Axis Drive
HRT210 4th Axis Rotary Table
4th Axis Tailstock
Wireless Intuitive Probing System
Thru Spindle Coolant 300 PSI
Multi Auger Chip Conveyor
55 Gallon Coolant Tank
Programmable Coolant
50 Taper Spindle
Remote Jog Handle
Rigid Taping
High Intensity Lighting
Intuitive Programming System
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
30+1 Side ATC
4th Axis Drive
HRT210 4th Axis Rotary Table
4th Axis Tailstock
Wireless Intuitive Probing System
Thru Spindle Coolant 300 PSI
Multi Auger Chip Conveyor
55 Gallon Coolant Tank
Programmable Coolant
50 Taper Spindle
Remote Jog Handle
Rigid Taping
High Intensity Lighting
Intuitive Programming System
Owner:
Ronald (Machine Shop in LA)
