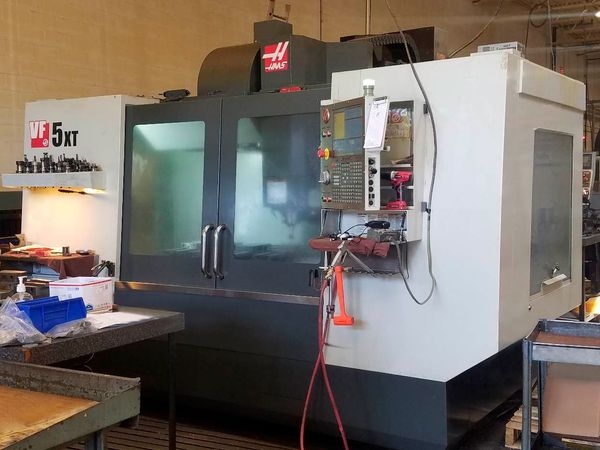

Pre-owned HAAS VF5-40XT 2014 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Ce...Read More
Notify Me:
Specs:
X Axis Travel: 60"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Torque 90 ft-lbf
Max Cutting 500 ipm
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Table Size: 62" x 23"
Dimensions: 168" x 102" x 113"
Weight: 15,600 LBS
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Torque 90 ft-lbf
Max Cutting 500 ipm
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Table Size: 62" x 23"
Dimensions: 168" x 102" x 113"
Weight: 15,600 LBS
Options:
HAAS CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
5 Axis
4th Axis Drive
5th Axis Drive
Hi Speed Machining
Hi Pressue Thru Spindle Coolant
Coolant Filter
Programmable Coolant Nozzle
Renishaw Tool Probe & Work Probe
10,000 RPM Gearbox Spindle
Remote Jog Handle
Chip Auger
Probe
Coolant Thru Spindle
Programmable Coolant
5 Axis
4th Axis Drive
5th Axis Drive
Hi Speed Machining
Hi Pressue Thru Spindle Coolant
Coolant Filter
Programmable Coolant Nozzle
Renishaw Tool Probe & Work Probe
10,000 RPM Gearbox Spindle
Remote Jog Handle
Chip Auger
