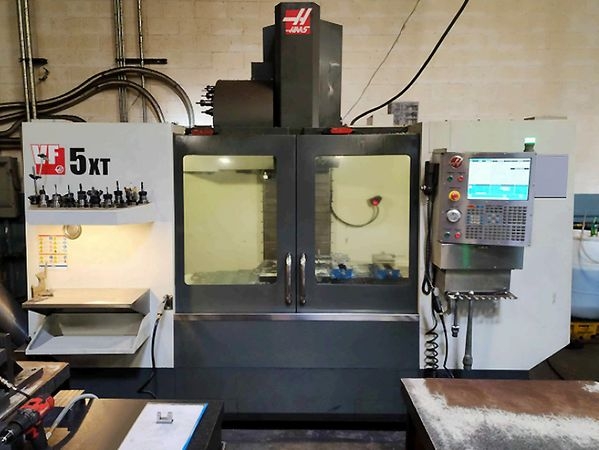

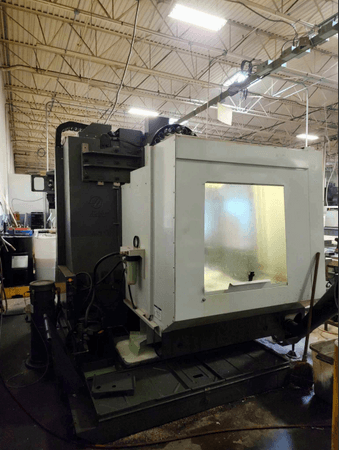

2014 HAAS VF5-40XT #9257

X Axis Travel: 60"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS

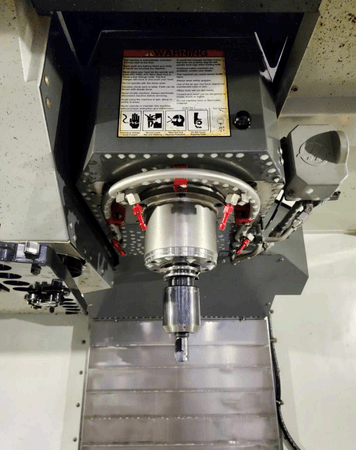

Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT

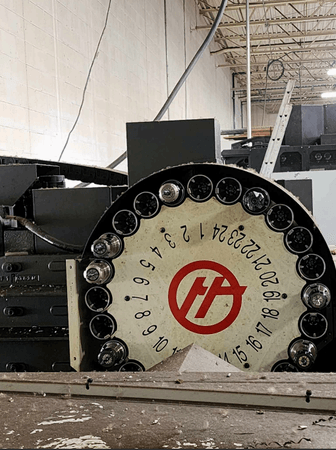

Tool Changer: 20 ATC
Max Torque 90 ft-lbf
Max Cutting 500 ipm
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool 4.2 s
Chip-to-Chip 4.5 s
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Table Size: 62" x 23"
Weight: 15,600 LBS

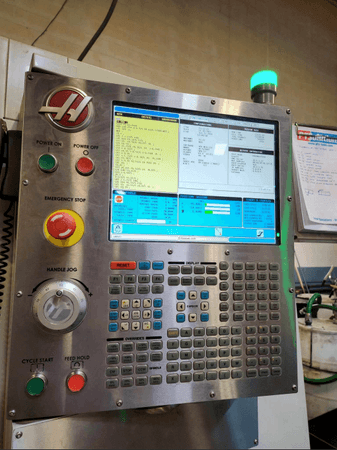

HAAS CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
Remote Jog Handle
Chip Auger
High Speed Machining
High Pressure Through Spindle Coolant
10,000 RPM Gearbox Spindle
Coolant Filter
