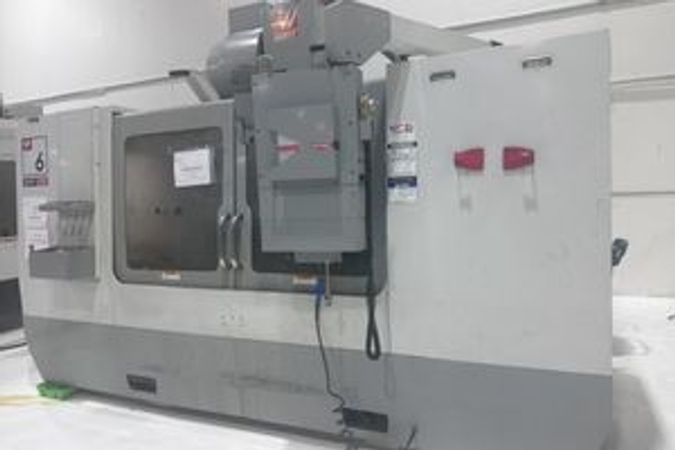

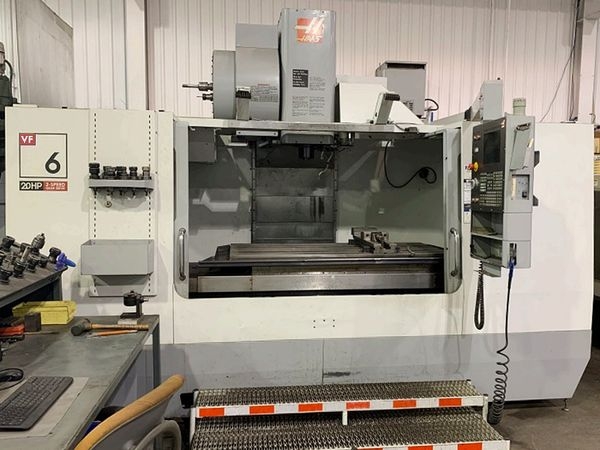

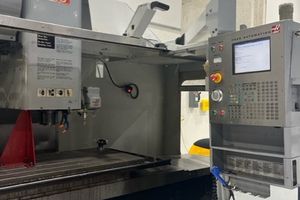

2006 HAAS VF6 #9173

X Axis Travel: 64"
Y Axis Travel: 32"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Spindle Motor: 20 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting: 500 in/min
Max Thrust X: 3400 LBS
Max Thrust Y: 3400 LBS
Max Thrust Z: 5600 LBS
Tool-to-Tool: 2.8 sec
Chip-to-Chip: 3.6 sec

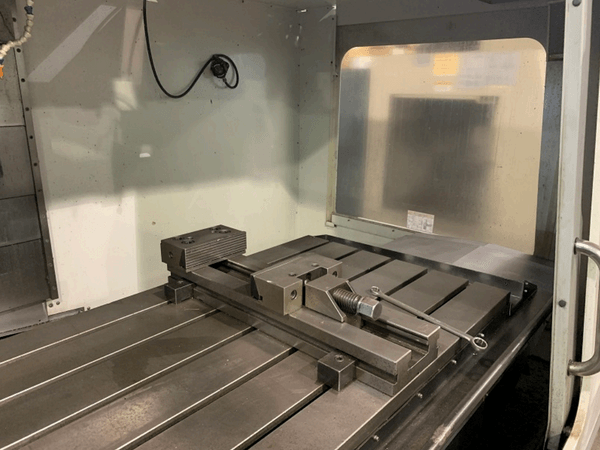

Table Size: 64" x 28"
Dimensions: 195" x 102" x 130"

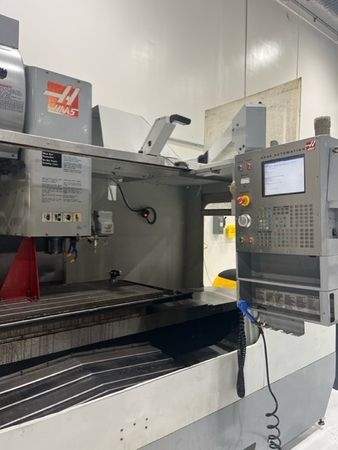

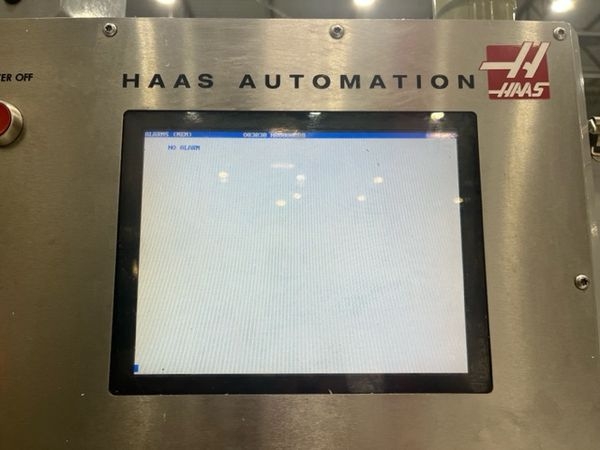

HAAS CNC Control
Probe
Programmable Coolant
High Intensity Lighting
24 Position Sidemount Tool Changer
2 Speed Gearbox
Remote Jog Handle
Chip Auger
12,000 RPM Spindle
