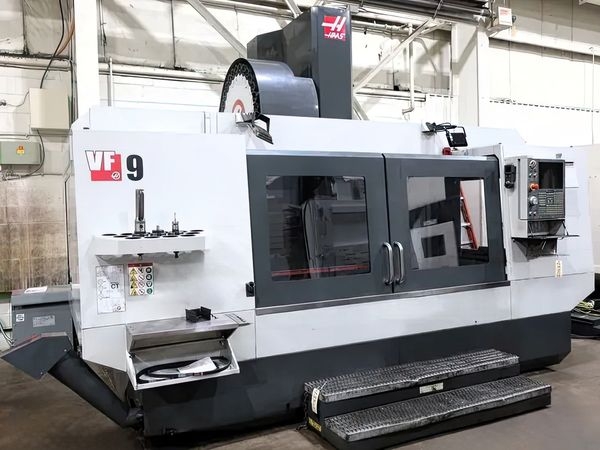

Pre-owned HAAS VF9-50 2016 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Illinois. This HAAS Verti...Read More
Notify Me:
Specs:
X Axis Travel: 84"
Y Axis Travel: 40"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50
Tool Changer: 30 ATC
Drive System 2-Speed Gearbox
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3"
Table Size: 84" x 36"
Weight: 28,900 LBS
Y Axis Travel: 40"
Z Axis Travel: 30"
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50
Tool Changer: 30 ATC
Drive System 2-Speed Gearbox
Max Cutting 500 ipm
Max Thrust X 3400 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 5600 lbf
Max Tool Diameter 4"
Max Tool Diameter 10"
Max Tool Length 16"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 6.3"
Table Size: 84" x 36"
Weight: 28,900 LBS
Options:
HAAS CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
New Spindle Installed 8/2024
2 Speed Gear Box
High Speed Machining
Rigid Tapping
Remote Jog Handle
Internal High Voltage Transformer
Cabinet Cooler
Auxiliary Coolant Filter
High Intensity Lights
Automatic Air Gun
Haas Connect
Through Spindle Coolant, 300 psi system
Chip Auger
Probe
Coolant Thru Spindle
Programmable Coolant
New Spindle Installed 8/2024
2 Speed Gear Box
High Speed Machining
Rigid Tapping
Remote Jog Handle
Internal High Voltage Transformer
Cabinet Cooler
Auxiliary Coolant Filter
High Intensity Lights
Automatic Air Gun
Haas Connect
Through Spindle Coolant, 300 psi system
Chip Auger
