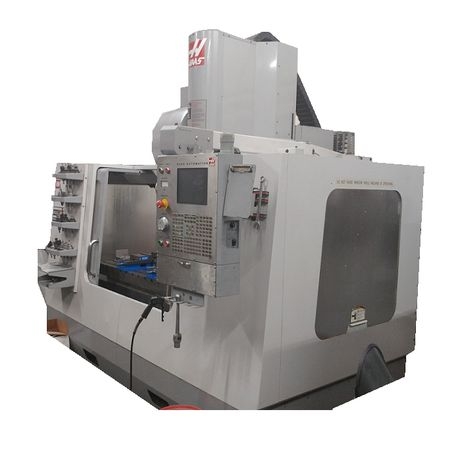

Pre-owned HAAS VM3 2006 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Arizona. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VM3 before it's gone.
Notify Me:
Specs:
X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 54" x 25"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 500 ipm
Max Thrust 4,100 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 5" Max Tool Length 13"
Max Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
Coolant Capacity 55 Gal
Dimensions: 164" x 102" x 125"
Weight: 15,300 LBS
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 54" x 25"
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 500 ipm
Max Thrust 4,100 lbf
Max Tool Diameter 2.5"
Max Tool Diameter 5" Max Tool Length 13"
Max Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
Coolant Capacity 55 Gal
Dimensions: 164" x 102" x 125"
Weight: 15,300 LBS
Options:
HAAS CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
Probe
Coolant Thru Spindle
Programmable Coolant
