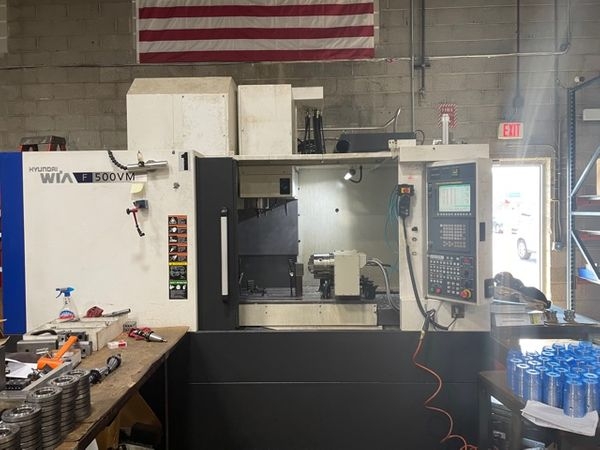

Pre-owned HYUNDAI F500VM 2015 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Fanuc control. This CNC Machine is currently located in Illinois. This HYUNDAI Vertical ...Read More
Notify Me:
Specs:
X Axis Travel: 43.3"
Y Axis Travel: 21.7"
Z Axis Travel: 20.5"
Table Size: 47.2 x 21.6
Max Table Load: 1,764 LBS
Spindle Motor: 20 HP
Spindle Speed: 10,000 RPM
Spindle Taper: NT#40BigPlus CT
Tool Changer: 30 ATC
Rapid Rate X Axis: 1,415 IPM
Rapid Rate Y Axis: 1,415 IPM
Rapid Rate Z Axis: 1,179 IPM
Dimensions: 122" x 86" x 103"
Weight: 14,770 LBS
Y Axis Travel: 21.7"
Z Axis Travel: 20.5"
Table Size: 47.2 x 21.6
Max Table Load: 1,764 LBS
Spindle Motor: 20 HP
Spindle Speed: 10,000 RPM
Spindle Taper: NT#40BigPlus CT
Tool Changer: 30 ATC
Rapid Rate X Axis: 1,415 IPM
Rapid Rate Y Axis: 1,415 IPM
Rapid Rate Z Axis: 1,179 IPM
Dimensions: 122" x 86" x 103"
Weight: 14,770 LBS
Options:
Fanuc
Chip Conveyor
Coolant Thru Spindle
4th Axis Ready - Rotary Head not part of sale
Oil Chiller
Coolant Thru Spindle, 285 PSI
Chip Conveyor
Coolant Thru Spindle
4th Axis Ready - Rotary Head not part of sale
Oil Chiller
Coolant Thru Spindle, 285 PSI
