Brand:
JOHNFORD
Model:
ST60B
Year:
2006
Category:
CNC Lathe
ID:
2547
Specifications:
Bar Capacity: 4.6"
Chuck Size: 18"
Spindle Speed: 2,000 RPM
Spindle Motor: 50 HP
X Axis Travel: 12.6"
Z Axis Travel: 47.2"
Rapid Rate Z Axis: 708 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 580 IPM
Max Turning Dia: 25,1"
Max Turning Length: 47"
Max Swing: 33.9"
Dimensions: 243" x 89" x 109"
Weight: 26,300 LBS
Chuck Size: 18"
Spindle Speed: 2,000 RPM
Spindle Motor: 50 HP
X Axis Travel: 12.6"
Z Axis Travel: 47.2"
Rapid Rate Z Axis: 708 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 580 IPM
Max Turning Dia: 25,1"
Max Turning Length: 47"
Max Swing: 33.9"
Dimensions: 243" x 89" x 109"
Weight: 26,300 LBS
Equipped With:
Fanuc OI-TC
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Full C Axis
4 Speed Gear Box
300 PSI High Pressure Coolant
Transformer
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Full C Axis
4 Speed Gear Box
300 PSI High Pressure Coolant
Transformer
Price:
$89,500
Seller:
MichF561
Location:
Sanford FL
Serial:
TCB6046
History:

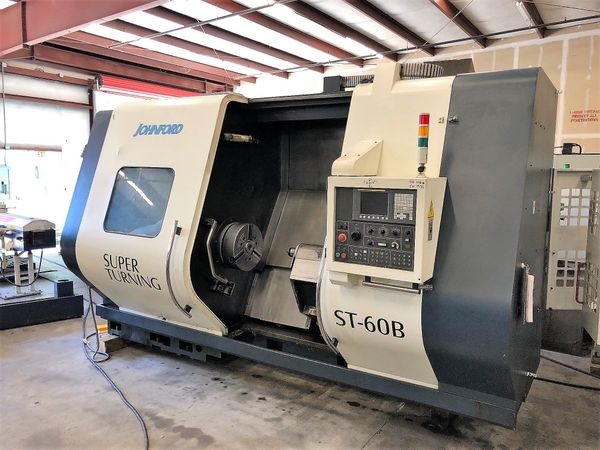

Johnford live tool cnc lathes are known for big turning and heavy parts. This machine comes with live milling feature and full C axis. We have a full set of tooling, tailstock and tool eye. Come see this used cnc lathe with live tool and large machining capacity on our floor under power.
