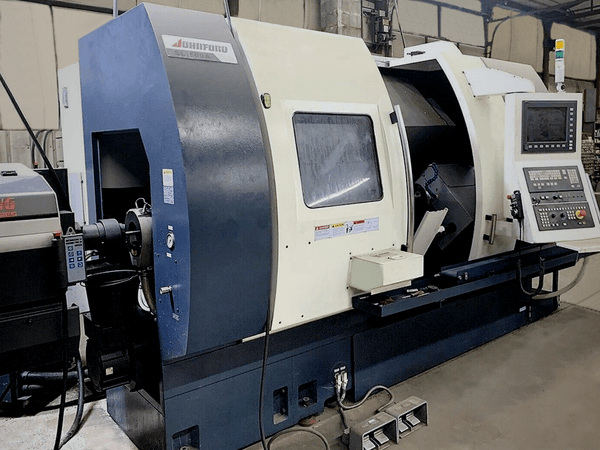

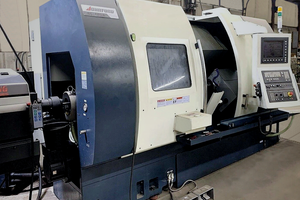

Used JOHNFORD SL500A2S CNC Lathe
Title: 2018 JOHNFORD SL500A2S CNC Lathe with Low Hours and Comprehensive Options Package Description: We are pleased to offer this low-hour 2018 JOHNFORD SL500A2S CNC Lathe for sale. This machine has been gently used for a specific project, accruing less than 500 hours of operation time. It has only run one product for two days a month, resulting in a well-maintained piece of equipment that is ready to enhance your production capabilities. This CNC lathe features the SL 500A 2S+C+Y model, providing enhanced precision and performance. Key technical specifications include a 12" chuck size, 102mm bar capacity, an A2-11 spindle nose, and a spindle speed range of 2800 RPM. Boasting a 160mm spindle bearing diameter, this machine offers consistent and stable machining capabilities. This CNC lathe offers a wide range of features for diverse applications. It comes with a chip conveyor, tool presetter, bar feeder, parts catcher, live tooling, sub-spindle, Y-axis, tracer 65 80 12' bar feeder, 12-station live tooling "C" axis spindle BMT-65, Y-axis function +/- 2" travel, and sub-spindle 2" bar capacity with a maximum speed of 4500 RPM and 15HP. Additionally, it includes an 8" chuck, chuck air blast, one axial live tool head (BMT-65), one radial live tool head (BMT-65), a royal collet setup for the main and sub-spindle, and a quick-change tool. As the original purchase price for this machine was $327,500, this presents an enticing opportunity for buyers seeking to invest in high-quality machinery with a more manageable price point. Furthermore, a video showcasing the functionality and condition of the CNC lathe is available for your viewing convenience. If you are looking for a CNC lathe with a low operational history and an expansive set of features, this 2018 JOHNFORD SL500A2S is the ideal addition to your workshop or production floor. Don't miss out on the opportunity to expand your capabilities in an accessible and cost-effective manner.
Swing over Cross Slide: 370mm
Chuck Size: 12"
Bar Capacity: 102 mm
Spindle Nose: A2-11
Spindle Bore: 115 mm
Spindle Speed Step(s): One Speed
Spindle Speed Range: 2800 Rpm
Spindle Motor: 28 / 42 Kw
Spindle Bearing Diameter: 160 mm
No. of Tools: 12
Cross Travel (Y-Axis) +/-50mm (Turret)
Cross Travel (X-Axis) +/-225mm (Turret)
Longitudinal Travel (Z-Axis) 470 mm (Turret)
Rapid Transverse X: 15m/min, Y:10m/min, Z: 18m/min (Turret)
Sub-Spindle Chuck Size: 8"
Sub-Spindle Bar Size: 51mm
Sub-Spindle Nose: A2-6
Sub-Spindle Bore: 66mm
Sub-Spindle Speed Step(s): One Speed
Sub-Spindle Motor: 12 /18.5 Kw
Sub-Spindle Bearing Diameter: 100mm
Servo Motor (X-Axis): 7.4 Kw (for Y-Axis)
Servo Motor (Y-Axis): 3.6 Kw
Servo Motor (Z/W-Axis): 7.4 Kw
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Tracer 65 80 12' Bar Feeder
12-Station Live Tooling "C" Axis Spindle BMT-65
Y-Axis Function +/- 2" Travel
Sub Spindle 2" Bar Capacity, 4500 RPM, 15HP, 8" Chuck
Chuck Air Blast
1 Axial Live Tool Head (BMT-65)
1 Radal Live Tool Heads (BMT-65)
Royal Collet Setup (Main & Sub-Spindle & Quick Change Tool)
