Seller Needs:
$13,800|
26
|
0

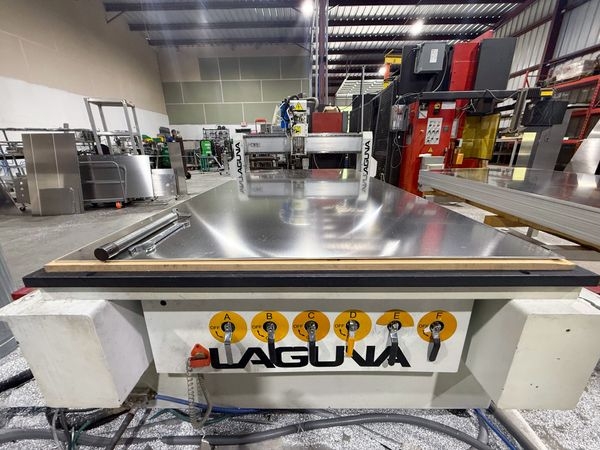

Pre-owned LAGUNA SMARTSHOP I 2017 Router. This Router has average cutting time and is equipped with a Handheld RichAuto control. This CNC Machine is currently located in USA. This LAGUNA Router is available for a limited time. Get a quote today on this SMARTSHOP I before it's gone.
Seller Needs:
Payment:
Specs:
2017 Laguna Smartshop 1 CNC Router 4x8 for sale.
I have owned this machine for about 7 years and it has been a productive workhouse without any major issues or trouble. We machine primarily aluminum and plastic parts for the marine industry. It has about 4000 hours on the spindle but that data is not stored in the machine. This machine does not have a tool changer.
I have 2 brand new Laguna routers (larger tables) on the way. This machine will be under power and in daily production duties until early May when the new machines arrive. It runs great and is easy to use - ready to continue making money for a new owner.
Message here or contact Jamie to ask questions or purchase this machine.
Machine Specs:
Motor: 6 HP constant torque
Spindle: High frequency liquid-cooled spindle built with NSK bearings rated for 100% duty cycle
Spindle RPM: (6,000-24,000 rpm).
Collet: ER25
Rapid travel: 900 in/min
Maximum cutting speed: 600 in/min
Dust port diameter: 4 inches
Volts: 208V/3PH
Precision Helical Rack & Pinion Drive System for X and Y Axis
20mm heavy-duty HiWin HG Series linear bearings and rails on all axes
Controller: Laguna Hand Held
Gantry Clearance: 6"
Machine Work Table: 47 " x 97 "
Z Axis: 8"
X and Y Axis: 48" x 96"
Machine Foot Print: 67.5 " x 120 "
6-zone vacuum table with T-slots
Heavy-duty welded tubular steel
frame (3000 lbs)
Solid state limit switches
Centralized lubrication system
for all axes.
Not included: coolant mister, cutting tools or collets, vacuum pump, power cable to machine or vacuum pump.
We can load the machine onto a trailer for you. If you do not have 3 phase power, you can simply install a rotary phase converter to make it work on single phase.
I have a good post-processor for this machine and Fusion 360.
We also have a Smart Shop II with a tool changer for sale (check other listings). I have one 10HP 208/3ph regenerative blower vacuum pump that can be purchased as well.
I have owned this machine for about 7 years and it has been a productive workhouse without any major issues or trouble. We machine primarily aluminum and plastic parts for the marine industry. It has about 4000 hours on the spindle but that data is not stored in the machine. This machine does not have a tool changer.
I have 2 brand new Laguna routers (larger tables) on the way. This machine will be under power and in daily production duties until early May when the new machines arrive. It runs great and is easy to use - ready to continue making money for a new owner.
Message here or contact Jamie to ask questions or purchase this machine.
Machine Specs:
Motor: 6 HP constant torque
Spindle: High frequency liquid-cooled spindle built with NSK bearings rated for 100% duty cycle
Spindle RPM: (6,000-24,000 rpm).
Collet: ER25
Rapid travel: 900 in/min
Maximum cutting speed: 600 in/min
Dust port diameter: 4 inches
Volts: 208V/3PH
Precision Helical Rack & Pinion Drive System for X and Y Axis
20mm heavy-duty HiWin HG Series linear bearings and rails on all axes
Controller: Laguna Hand Held
Gantry Clearance: 6"
Machine Work Table: 47 " x 97 "
Z Axis: 8"
X and Y Axis: 48" x 96"
Machine Foot Print: 67.5 " x 120 "
6-zone vacuum table with T-slots
Heavy-duty welded tubular steel
frame (3000 lbs)
Solid state limit switches
Centralized lubrication system
for all axes.
Not included: coolant mister, cutting tools or collets, vacuum pump, power cable to machine or vacuum pump.
We can load the machine onto a trailer for you. If you do not have 3 phase power, you can simply install a rotary phase converter to make it work on single phase.
I have a good post-processor for this machine and Fusion 360.
We also have a Smart Shop II with a tool changer for sale (check other listings). I have one 10HP 208/3ph regenerative blower vacuum pump that can be purchased as well.
Options:
Handheld RichAuto
6-Zone Vacuum Table with T-slots
6-Zone Vacuum Table with T-slots
Seller:
JameH987
Location:
USA
