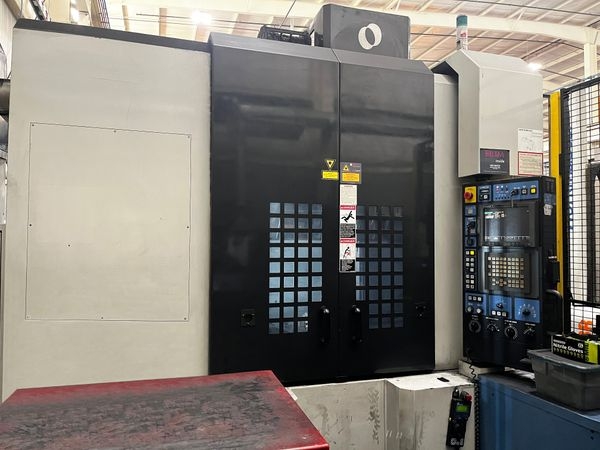

Pre-owned MAKINO V56 2000 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Tennessee. This MAKINO Vertical Machini...Read More
Seller Needs:
Payment:
Call For Financing
Specs:
X Axis Travel: 35.43"
Y Axis Travel: 21.65"
Z Axis Travel: 17.71"
Rapid Rate X Axis: 787 IPM
Rapid Rate Y Axis: 787 IPM
Rapid Rate Z Axis: 787 IPM
Max Table Load: 1,763 LBS
Spindle Motor: 20 HP
Spindle Speed: 20,000 RPM
Spindle Taper: HSK-F63
Tool Changer: 25 ATC
Table Size: 41.33" x 21.65"
Dimensions: 115" x 98" x 109"
Weight: 22,700 LBS
Y Axis Travel: 21.65"
Z Axis Travel: 17.71"
Rapid Rate X Axis: 787 IPM
Rapid Rate Y Axis: 787 IPM
Rapid Rate Z Axis: 787 IPM
Max Table Load: 1,763 LBS
Spindle Motor: 20 HP
Spindle Speed: 20,000 RPM
Spindle Taper: HSK-F63
Tool Changer: 25 ATC
Table Size: 41.33" x 21.65"
Dimensions: 115" x 98" x 109"
Weight: 22,700 LBS
Options:
System 3R Workmaster Robot
