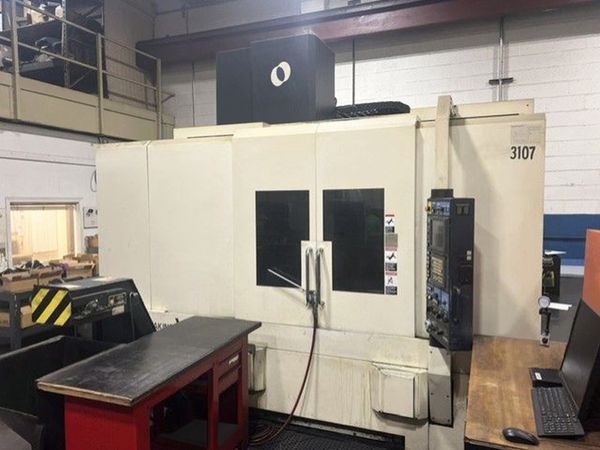

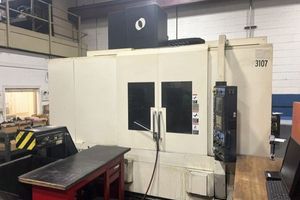

2002 MAKINO V77

Table size: 55.1" x 27.6" (1,400 x 700mm)
X Travel: 47.2" (1,200 mm)
Y Travel: 27.6" (700 mm)
Z Travel: 25.6" (650 mm)
Spindle: HSK-F63
Spindle Speed: 30,000 RPM
Rapid traverse: 787 in/min (20,000 mm/min)
Max workpiece: 55.1" x 27.6" x 21.7" (1,400 x 700 x 550 mm)
Max payload: 5,500 lbs (2,500 kg)
ATC capacity: standard 30 tools, expandable to 40 or 80
Tool-to-tool time: 5 sec
Max tool diameter/weight: 4.7" / 17.6 lbs (120 mm / 8 kg)
Control: Makino Pro 3 Control
Power: 460V, 50/60Hz, 50.1 kVA
Dimensions: 145.6" L × 118.1" W × 130" H (3,698 mm × 2,999 mm × 3,302 mm) Approx.
Weight: 35,200 lbs (15,966 kg) Approx.

10,100 Hours

Tooling package available for a price.

Chip Conveyor
