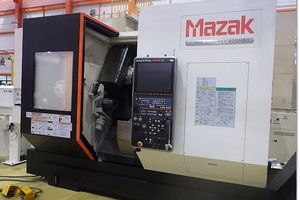

2013 MAZAK HYPERQUADREX 200MSY

ID:13534
Brand:MAZAK
Model: HYPERQUADREX 200MSY
Year:2013
Category:CNC Lathe
Location:USA

Located In USA

MAZAK HYPERQUADREX 200MSY AI Chat

Loading ...

Machine Overview

Specs:

Specifications (subject to buyer verification):
Maximum Swing Over Upper Turret......... 14.56"
Maximum Swing Over Lower Turret......... 12.598"
Maximum Machining Diameter: Chucking.... 13.54"(Upper)
Maximum Machining Diameter: Chucking.... 8.26"(Lower)
Maximum Distance Between Chuck Jaws..... 33.875"

MAIN SPINDLE SPECIFICATIONS (L):
Preparation ONLY for BB08 8" 3-Jaw or Collet Chuck
Spindle Nose............................ A2-6
Spindle Bore............................ 2.99"
Maximum Bar Work.... ................... 2.5"?
NOTE: Maximum bar work and maximum spindle speed
depends upon optional chuck package.
Spindle Speed........................... 35-5,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Min.)...... 20/30 HP (AC)
Spindle Torque (25% ED)................. 344.4 ft-lbs.

SECOND SPINDLE SPECIFICATIONS (R)
8" BB08 Chuck Package with Y1225 Non-thru cylinder
Spindle Nose............................ A2-6
Spindle Bore............................ 2.99"
Spindle Speed........................... 35-5,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Min.)...... 20/30 HP (AC)
Spindle Torque (25% ED)................. 344.4 ft-lbs.

UPPER / LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... 12 pos. Drum VDI
Tool Shank Height....................... 1"
Tool Size (Boring Bar Max. Dia.)........ 1.5"
Total Number of Tools................... 12
Tool Selection Method................... Bi-Directional
Tool Index Time (1 Step)................ 0.2 sec.
Rotary Tool Spindle Speed............... 35-6,000 RPM
Rotary Tool Spindle Horsepower/(10 min). 7.5 HP
Rotary Tool Torque (3 min.)............. 25.8 ft-lbs,
Maximum End Mill........................ 0.75" Dia.
Maximum Drill........................... 0.75" Dia.
Maximum Tap............................. M20 x 2.5

AXIS TRAVELS:
X1-Axis................................. 8.2"
Y1-Axis................................. +/-2.0"
Z1-Axis................................. 29.875"
X2-Axis.Lower........................... 5.5625"
Y2 Axis Lower........................... +0.75"/-2.0"
Z2 Axis Lower........................... 32.125"
W Axis.................................. 34.075"

AXIS RAPID RATES:
X1-Axis................................. 1181 IPM
Y1-Axis................................. 1024 IPM
Z1-Axis................................. 1417 IPM
X2-Axis Lower........................... 945 IPM
Y2-Axis Lower........................... 787 IPM
Z2 Axis Lower........................... 1417 IPM
W-Axis.................................. 1181 IPM
C1/C2-Axis.............................. 555 RPM

GENERAL SPECIFICATIONS:
Floor Space (WxL)....................... 137.8" x 103"
Machine Height.......................... 97.8"
Total Power Required (Machine Only)..... 61.4 KVA
NOTE: Actual Machine Main Transformer
KVA Rating Will be Greater.
Air Requirements........................ 72.5PSI/8.8CFM
Machine Weight.......................... 26,235 lbs.

Options:

Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Mazatrol Matrix Nexus 2 Control
Twin Turret with Milling

Description:

This 2013 MAZAK HYPER QUADREX 150MSY is a versatile machine tool that will enhance your production capabilities. Specifically designed for precision turning, milling, and drilling operations, this model is a valuable addition to any manufacturing facility looking to boost its capabilities. With the MAZAK HYPER QUADREX, you can undertake complex machining tasks with ease.

Featuring dual spindles and twin turrets, the machine can handle multiple operations in one setup. This feature saves both time and resources. The advanced control system is user-friendly, allowing operators to quickly adapt and make necessary adjustments to achieve desired outcomes. The machine's design contributes to smoother and faster operations, optimizing production throughput.

With a robust build, the 2013 MAZAK HYPER QUADREX 150MSY addresses the needs of various industries. The machine is equipped with a tool setter, chip conveyor, and tailstock, offering adaptability for a wide range of workpieces. The spindle's stability ensures that operations are consistent, improving the quality of finished products.

This used model has been well-taken care of and shows minimal signs of wear, ensuring that it remains a suitable option for your needs. Regular maintenance records are available, reflecting the machine's sound condition. It is an opportunity to own a high-capability machine without the cost of a brand-new purchase.

Whether you're expanding your facility's capabilities or seeking to replace an existing machine, this MAZAK model is a cost-effective solution that supports various applications. Seize the opportunity to integrate this machine into your workflow, where it can play a significant role in achieving production goals.
