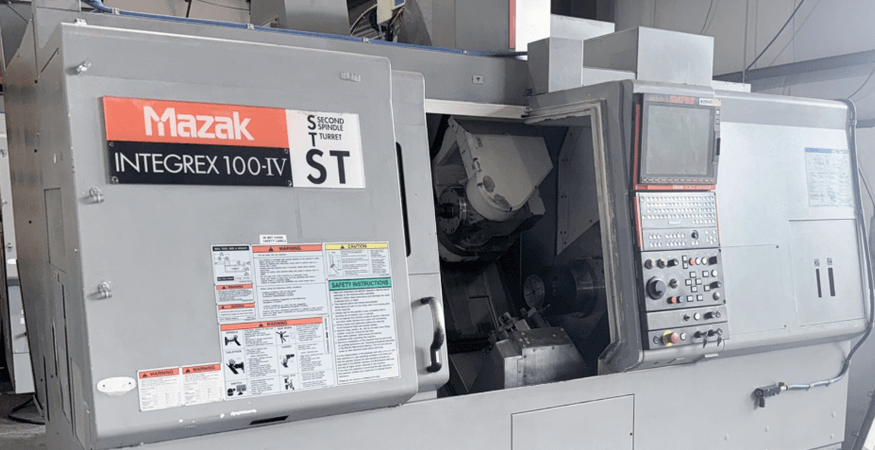

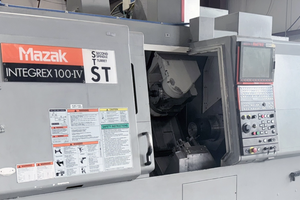

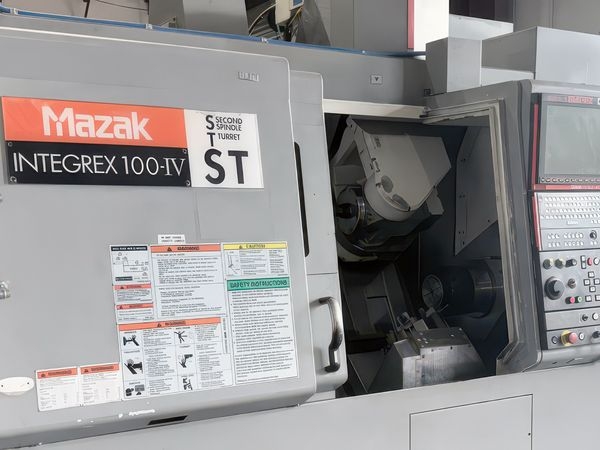

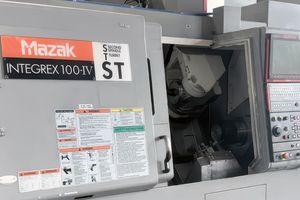

2013 MAZAK INTEGREX 100IVST

Max Swing using Y Axis: 16.22" - 21.46"
Max Swing Over Cross Slide: 13.86"
Max Swing over Lower Turret: 15.75"
Max Distance between Chuck Faces: 28.9"
Spindle Nose / Spindle Bore / Bar Cap: A2-5 / 2.4" / 1.65"
Spindle Index (degrees) C Axis: 0.0001 degree
Sub Spindle Nose / Bore: A2-5 / 2.4"
Sub Spindle Speed: 6,000 rpm
Sub Spindle Index: 0.001 degree
Sub Spindle HP: 10 / 15 HP AC
Upper Turret: 1 pos. w/ ATC
Magazine Capacity: 40 Positions
Rotary Tool Spindle HP: 7.5
Rotary Tool Speed: 12,000 RPM
Lower Turret: Drum Type
Lower Turret Positions: 9 Position Turret
B-Axis Travel - Pendulum Head: 225 Degrees
Y Axis Travels: +/- 2.75"
X Axis Travel: 16.14"
Z Axis Travel: 31.69"
X2 Axis Lower: 8.66"
Z2 Axis Lower: 30.71"
W Axis Travel - Sub Spindle: 31.3"

Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Capto C6 ATC Magazine
213 PSI Hi-Pressure Coolant
Mazacc-3D High Speed Software Pkg.
Tool Tip Point Control & Tool Radius Comp.
Synchronized Tapping
Inch/Metric Conversion
3D Coordinate Conversion
XYZ Pitch Error Compensation Input
EIA Dynamic Compensation
