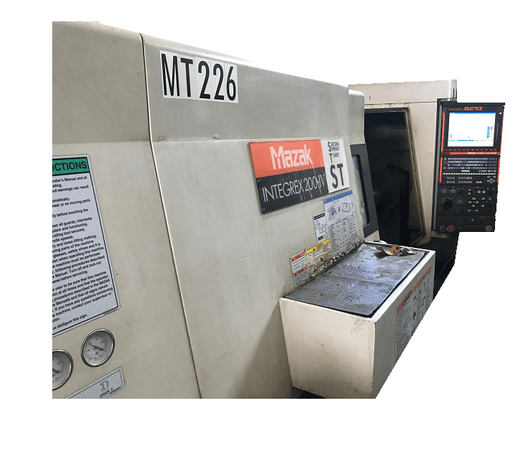

Used MAZAK INTEGREX 200IVST CNC Lathe
Pre-owned MAZAK INTEGREX 200IVST 2006 CNC Lathe for only $109,500. This CNC Lathe has average cutting time and is equipped with a Mazatrol Fusion control. This CNC Machine is currently located in Florida. This MAZAK CNC Lathe is the only one in stock and available for a limited time. Get a quote today on this INTEGREX 200IVST before it's gone.
Specifications:
Bar Capacity: 2.5"
Chuck Size: 8" (Main/Sub)
Spindle Speed: 5,000 (Main/Sub) RPM
Spindle Motor: 30 Main HP, 25 Milling HP
X Axis Travel: 22.83" Upper / 5.9" Lower"
Z Axis Travel: 60"
Rapid Rate Z Axis: --
Turret Tools: 9 Lower / 40 ATC Station
Rapid Rate X Axis: --
Max Turning Dia: 26" Upper / 10.24" Lower
Max Turning Length: 58.85"
Max Swing: 26"
Dimensions: 201" x 96" x 102"
Weight: 25,960 LBS
Chuck Size: 8" (Main/Sub)
Spindle Speed: 5,000 (Main/Sub) RPM
Spindle Motor: 30 Main HP, 25 Milling HP
X Axis Travel: 22.83" Upper / 5.9" Lower"
Z Axis Travel: 60"
Rapid Rate Z Axis: --
Turret Tools: 9 Lower / 40 ATC Station
Rapid Rate X Axis: --
Max Turning Dia: 26" Upper / 10.24" Lower
Max Turning Length: 58.85"
Max Swing: 26"
Dimensions: 201" x 96" x 102"
Weight: 25,960 LBS
Equipped With:
Mazatrol Fusion
Chip Conveyor
Live Tooling
Y Axis Milling
Sub Spindle
Live Tooling
1,000 PSI Thru Spindle Coolant
Bar Feeder Interface
Automatic Tool Eye
Main and Sub Synchronization
Chip Conveyor
Live Tooling
Y Axis Milling
Sub Spindle
Live Tooling
1,000 PSI Thru Spindle Coolant
Bar Feeder Interface
Automatic Tool Eye
Main and Sub Synchronization
Price:
$109,500
Seller:
Curtis (Machine Shop in USA)
