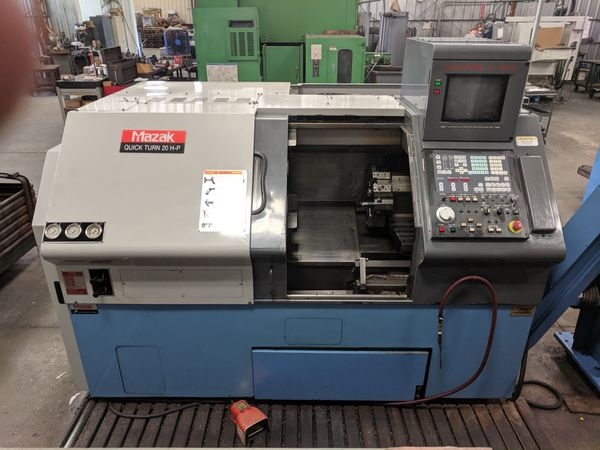

Used MAZAK QT20 CNC Lathe
Pre-owned MAZAK QT20 1995 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Mazatrol T Plus control. This CNC Machine is currently located in Ohio. This MAZAK CNC Lathe is available for a limited time.Get a quote today on this QT20 before it's gone.
Specs:
Bar Capacity: 2.75"
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.125"
Z Axis Travel: 20.125"
Rapid Rate Z Axis: 1,300 IPM
Turret Tools: 8 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 11.81"
Max Turning Length: 17.5"
Max Swing: 17.32"
Dimensions: 105" x 68.5" x 73.1"
Weight: 9,600 LBS
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.125"
Z Axis Travel: 20.125"
Rapid Rate Z Axis: 1,300 IPM
Turret Tools: 8 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 11.81"
Max Turning Length: 17.5"
Max Swing: 17.32"
Dimensions: 105" x 68.5" x 73.1"
Weight: 9,600 LBS
Options:
Mazatrol T Plus
Chip Conveyor
Chip Conveyor
Owner:
Tony (Machine Shop in USA)
