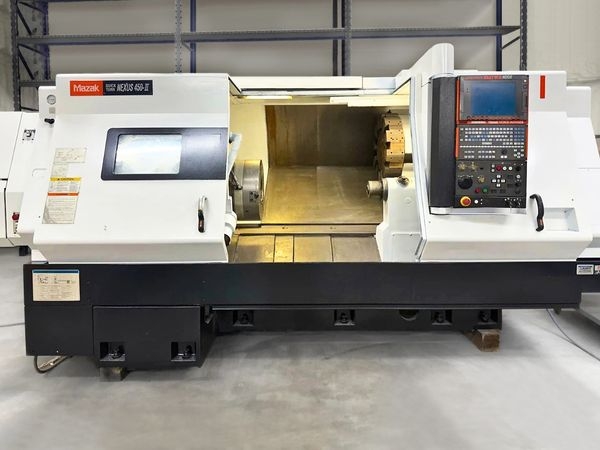

This 2007 MAZAK QTN450-II 40IN CNC Lathe is a robust machine suited for a variety of machining tasks. It's equipped with several features that enhance its functionality and flexibility in different fields of work.
Included wi...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 6.5"
Chuck Size: 18"
Spindle Speed: 2,000 RPM
Spindle Motor: 50 HP
X Axis Travel: 13.38"
Z Axis Travel: 42.12"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 22.83"
Max Turning Length: 40"
Max Swing: 33.26"
Spindle Bore: 7"
Spindle Nose: A2-15
Maximum Diameter of Shaft Work: 18.25"
Maximum Distance Between Centers: 40"
Tailstock Center: MT#5
Tailstock Travel: 32.5"
Dimensions: 144" x 90" x 80"
Weight: 19,000 LBS
Chuck Size: 18"
Spindle Speed: 2,000 RPM
Spindle Motor: 50 HP
X Axis Travel: 13.38"
Z Axis Travel: 42.12"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 22.83"
Max Turning Length: 40"
Max Swing: 33.26"
Spindle Bore: 7"
Spindle Nose: A2-15
Maximum Diameter of Shaft Work: 18.25"
Maximum Distance Between Centers: 40"
Tailstock Center: MT#5
Tailstock Travel: 32.5"
Dimensions: 144" x 90" x 80"
Weight: 19,000 LBS
Options:
Chip Conveyor
Tool Presetter
Tailstock
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
SPIRAL
EIA 3D COMP
ROTATION
GEOMETRIC
SCALING
EXT-DATA I/O
POLAR COORDINATES INPUT
COMPARISON STOP
S54.1
VARIABLE 600 SETS
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
PITCH ERROR COMPENSION
EIA/ISO PROGRAMMING
TRANSFORMER
18" AIR THRU HOLE CHUCK
PREPPED FOR REAR CHUCK
Tool Presetter
Tailstock
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
SPIRAL
EIA 3D COMP
ROTATION
GEOMETRIC
SCALING
EXT-DATA I/O
POLAR COORDINATES INPUT
COMPARISON STOP
S54.1
VARIABLE 600 SETS
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
PITCH ERROR COMPENSION
EIA/ISO PROGRAMMING
TRANSFORMER
18" AIR THRU HOLE CHUCK
PREPPED FOR REAR CHUCK
Seller:
RobeM747
Location:
TX
