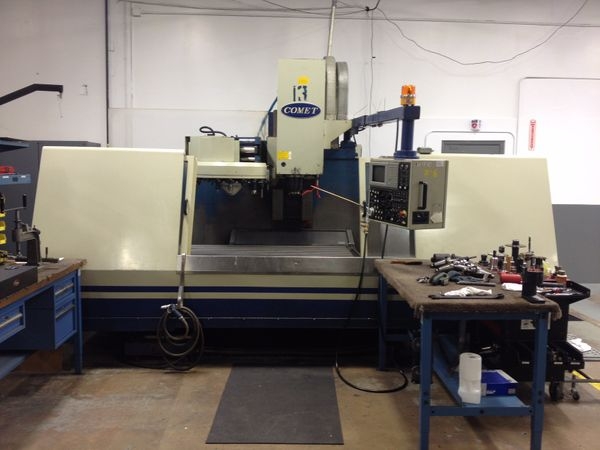

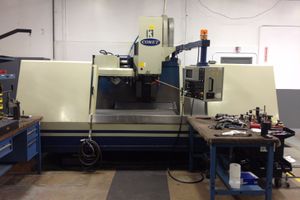

Pre-owned MIGHTY COMET VMC1500G 1998 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a MITSUBISHI M520A CNC CONTROL control. This CNC Machine is currently located in USA. This MIGHTY COMET Vertical Machining Center is available for a limited time. Get a quote today on this VMC1500G before it's gone.
Notify Me:
Specs:
Travel:
X-Axis 58.5"
Y-Axis 28.5"
Z-Axis 24.5"
Table Size 63" x 30"
Spindle Speed 50 - 4250 RPM
Spindle Taper Cat 50
Spindle Nose to Table Top 7.4" - 31.9"
Spindle Motor 20 HP AC
Tools 20
Table Load Capacity 3000 lbs.
Rapid Traverse Rates 590 IPM
Max Tool Diameter 6"
Max Tool Length 15"
Max Tool Weight 33 lbs.
Machine Dimensions (L x W x H) 149" x 110" x 110"
Machine Weight 18,739 lbs.
X-Axis 58.5"
Y-Axis 28.5"
Z-Axis 24.5"
Table Size 63" x 30"
Spindle Speed 50 - 4250 RPM
Spindle Taper Cat 50
Spindle Nose to Table Top 7.4" - 31.9"
Spindle Motor 20 HP AC
Tools 20
Table Load Capacity 3000 lbs.
Rapid Traverse Rates 590 IPM
Max Tool Diameter 6"
Max Tool Length 15"
Max Tool Weight 33 lbs.
Machine Dimensions (L x W x H) 149" x 110" x 110"
Machine Weight 18,739 lbs.
Options:
MITSUBISHI M520A CNC CONTROL
4th Axis Rotary Table
4th Axis Rotary Table
