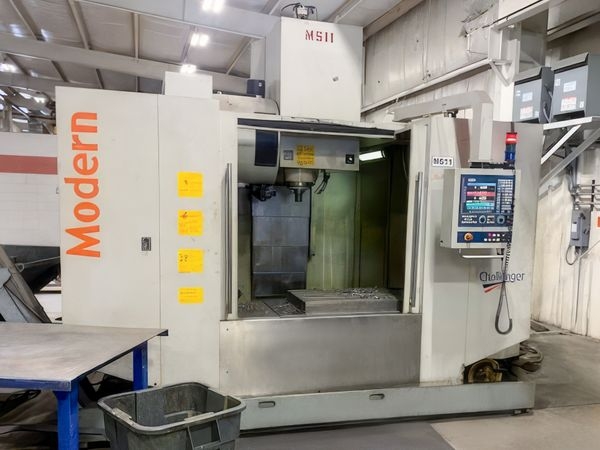

MODERN CHALLENGER 1300 CNC Mill

TABLE SIZE 1500 X 660 mm (59 X 26)
TABLE HEIGHT 850 mm (33.5)
T-SLOT (W/PITCH/NO) 18x 135 x 6 mm
MAX. TABLE LOAD 1500 kg (3,300 lbs.)

TRAVEL
X AXIS 1300mm (51)
Y AXIS 710 mm (28)
Z AXIS 710mm (28)
SPINDLE NOSE TO TABLE 120-830mm (4.7 – 32.7)

SPINDLE
SPINDLE TAPER ISO 50
SPINDLE DIAMETER 70 mm (2.75
SPINDLE SPEED – 2 SPEED GEARED 1200 RPM LOW RANGE
6000 RPM HIGH RANGE
MOTOR SPEED (RATED/MAX.) 9000 (FAGOR)
MOTOR OUTPUT 11/15 kw (15/20 hp)
GEAR RATIO 1.1 : 1 (FAGOR)
TRANSMISSION BELT & GEAR BOX
TOOL CLAMPING FORCE 1200 kg f (2600 lb f)

AXES TRANSMISSION
X AXIS
BALLSCREW D40x P12 x C3

GUIDEWAY
X GUIDE WAY .SQUARE BOX WAYS
WIDTH 80mm (3.15)
THICK 35mm (1.37)
GUIDE DISTANCE 500mm (19.68)
LUBRICATION OIL

Y GUIDE WAY SQUARE WAYS
WIDTH 225mm (8.85)
THICK 40mm (1.57)
GUIDE DISTANCE 600mm (23.62)
LUBRICATION OIL

Z GUIDE WAY SQUARE WAYS
WIDTH 100mm (3.93)
THICK 35mm (1.37)
GUIDE DISTANCE 350mm (13.78)
LUBRICATION OIL

AXES FEED RATE
X RAPID 24 m.min.
FEED 8 m/min.
Y RAPID 24 m.min.
FEED 8 m/min
Z RAPID 24 m.min.
FEED 8 m/min

ATC SYSTEM
TOOL SHANK TYPE CAT ISO50
ATC TYPE ARM
NO. OF TOOLS 32
ATC TIME (T-T) 4 sec.
POCKET PITCH 76.2mm
MAX. TOOL LENGTH 300mm
MAX. TOOL WEIGHT 8 KG
MAX. TOOL DIAMETER 75mm

PNEUMATIC
AIR PRESSURE 6 BAR
AIR CONSUMPTION 400 L/min

LUBRICATION
PUMP MOTOR 30 w
PUMP FLOW RATE 2.2 cc/sec.
PUMP PRESSURE 8 BAR
TANK CAPACITY 2 LITRE
LUB. PERIOD (sec) 0-12(WORKING); 5 SEC. – 180 min (BREAK)
DISTRIBUTOR TYPE VOLUMETRIC
OIL TYPE 20#

COOLANT
PUMP MOTOR ¼ HP

ACCURACY
POSITIONING +-0.005/300
REPEATABILITY 0.005 mm

DIMENSIONS
DEPTH 3.4 m
WIDTH 2.84 m
HEIGHT 2.6 m
WEIGHT 7750 KG (17,050 LBS)
