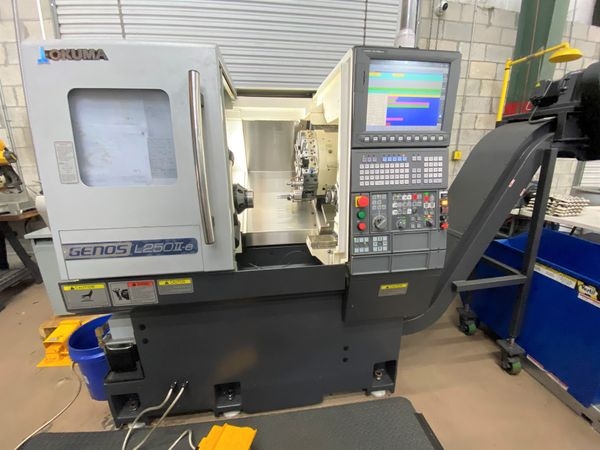

Used OKUMA GENOS L250E CNC Lathe
Specifications:
Bar Capacity: 2"
Chuck Size: Collet Chuck (Hydraulic chuck included, not installed)
Spindle Speed: 3,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 6.3"
Z Axis Travel: 20.742"
Rapid Rate Z Axis: 1,176 IPM
Turret Tools: 8 Station
Rapid Rate X Axis: 984 IPM
Max Turning Dia: 11.02"
Max Turning Length: 11.42"
Max Swing: 17.71"
Dimensions: 82" x 61" x 62"
Weight: 8,157 LBS
Chuck Size: Collet Chuck (Hydraulic chuck included, not installed)
Spindle Speed: 3,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 6.3"
Z Axis Travel: 20.742"
Rapid Rate Z Axis: 1,176 IPM
Turret Tools: 8 Station
Rapid Rate X Axis: 984 IPM
Max Turning Dia: 11.02"
Max Turning Length: 11.42"
Max Swing: 17.71"
Dimensions: 82" x 61" x 62"
Weight: 8,157 LBS
Equipped With:
OPS P300L
Chip Conveyor
Tool Presetter
Tailstock
Collet Chuck
Chip Conveyor
Tool Presetter
Tailstock
Collet Chuck
