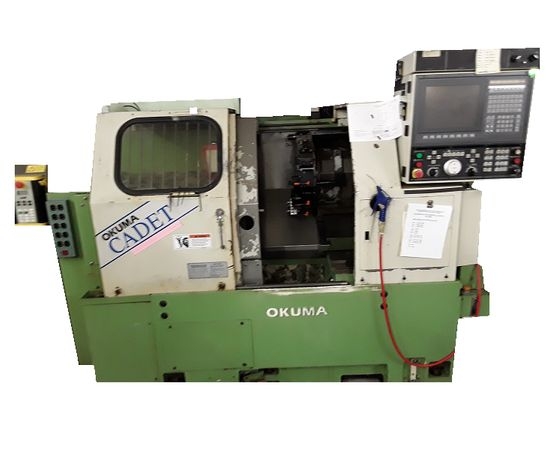

Used OKUMA LNC8 CNC Lathe
Pre-owned OKUMA LNC8 1992 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This OKUMA CNC Lathe is available for a limited time.Get a quote today on this LNC8 before it's gone.
Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 3,500 RPM
Spindle Motor: 15 HP
X Axis Travel: 6.9"
Z Axis Travel: 20"
Rapid Rate Z Axis: 787 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 9.84"
Max Turning Length: 19.59"
Max Swing: 15.75"
Spindle Nose: A2-8
Tailstock Quill Dia.: 3.94?
Tailstock Quill Stroke: 4.72?
Tailstock Taper: MT-5
Dimensions: 110" x 76" x 80"
Weight: 9,500 LBS
Chuck Size: 8"
Spindle Speed: 3,500 RPM
Spindle Motor: 15 HP
X Axis Travel: 6.9"
Z Axis Travel: 20"
Rapid Rate Z Axis: 787 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 9.84"
Max Turning Length: 19.59"
Max Swing: 15.75"
Spindle Nose: A2-8
Tailstock Quill Dia.: 3.94?
Tailstock Quill Stroke: 4.72?
Tailstock Taper: MT-5
Dimensions: 110" x 76" x 80"
Weight: 9,500 LBS
