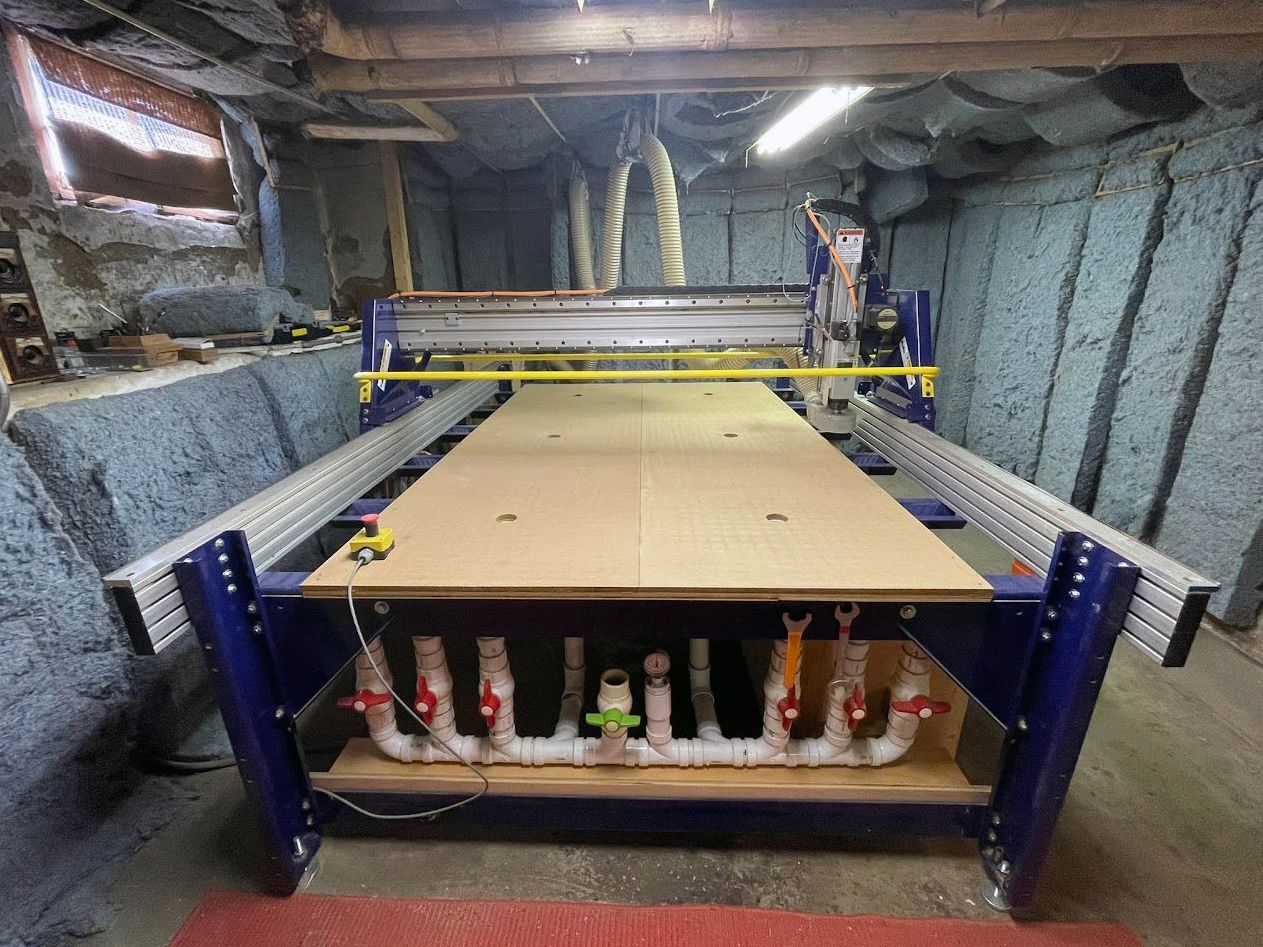

2008 SHOPBOT PRSALPHA96

4 hp Spindle Router 220V Single Phase
• Vacuum hold down system, 2 - 240v Lighthouse LH7123-13 motors, 6 zones. (box holds 4 motors, 2 additional motors included)
• Sealed Industrial UL Certified Control Box.
• Emergency stop disconnect switch
• Z-Zero Touch-Off Plate and XY Limit switches.
• Dust Skirt ready to connect to your dust collector.
• Closed Loop control system using Oriental Motor’s alphaStep technology monitors position on all axes during cutting to eliminate position loss.
• Low-backlash, tapered-hob gear heads on all drive motors create level torque curve for consistent performance even at high speeds.
• Precision linear rail and bearings on Y-axis and Z-axis for smooth motion; hardened steel track on X-axis resistant to damage from cutting debris.
• Easy to maintain rack-and-pinion power transmission on each axis.
• Cutting speeds of up to 720 inches per minute (depending on cutting bit and material) and rapid speeds of 1,800 inches per minute.
• Step Resolution of 0.0004”

Cut/Movement Area 103” x 61” x 8”
Footprint 120” x 91” x 67”

The ShopBot Control System Software is compatible with many software programs.
Compatible programs include: Fusion 360 • AutoCAD • Rhino 3D • SketchUp • Aspire • Cabinet Vision • EnRoute • KCD • MasterCAM • MillWizard • OneCNC • Shape 3D • Vector CAD CAM • Visualmill • CabinetParts Pro • DeskProto

Shopbot provides lifetime support and an active user forum.

Probe
Vacuum System
Hold Down
