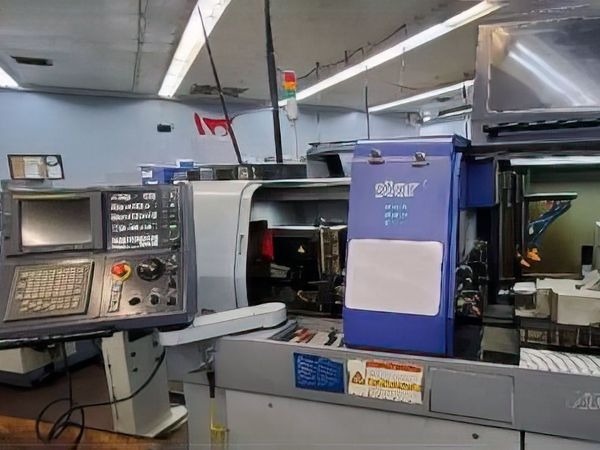

2008 STAR SR20J TYPE C

Bar Capacity: 0.78"
Spindle Speed: 10,000 RPM
Spindle Motor: 4.9 HP

Power:
2.2 kw
Rpm:
10000.0 rpm
Machining diameter:
20MM
Main spindle speed:
10,000 RPM
Main spindle indexing:
Full C-Axis
Main spindle motor:
4.9 HP
Tool stationsgang tool post:
6 Turning Tools / 4 Power-Driven Tool Stations
4-spindle sleeve holder:
4 Front Working / 4 Back Working
Milling capacity:
0.39"
Back working attachmentchucking diameter:
3/4"
Pick-up part length:
3.14"
Part protection length:
1.18"
Sub spindle speed:
8,000 RPM
Sub spindle motor:
2.9 HP
Number of tool stations:
4 Stationary or Power Driven Tools
Machine dimensions – catalog:
86" x 47" x 66"
Machine weight – catalog:
4,850 lbs
Dimensions: 863" x 47" x 66"

Fanuc
Live Tooling
Sub Spindle
Y Axis
5 Axis
5 Main side live crossworking positions
4 Sub side live positions
Rotating guide bushing
