2013 STAR SR32J

ID:4867
Brand:STAR
Model: SR32J
Year:2013
Category:CNC Lathe
Location:New Mexico

Located In New Mexico

SHIPPING COST :

Hello!

Machine Overview

Specs:

Bar Capacity: 32mm / 1.25"
Spindle Speed: 7,000 RPM
Spindle Motor: 10 HP
Z Axis Travel: 12.2"
Rapid Rate Z Axis: 944 IPM
Rapid Rate X Axis: 944 IPM
Number of Axis: 7
FONT SIDE:
Main spindle (headstock) Z1 / C1 axis
Tool post 1 X1 / Y1 axis
Max. machining diameter 32 mm / 34 mm (option)
Max. headstock stroke (standard) 310 mm
Max. headstock stroke with flexible guide bush unit 280 mm
Drive power main spindle 7.5 kW
Max. main spindle speed 7,000 rpm
Tools on the tool post
Turning tools 6 tools (16 mm)
Drilling tools
(4-spindle sleeve holder) 4 tools (1 x 32 mm / 3 x 32 mm sleeves)
Cross driven tools 5 tools (ER16)
Speed 5,000 rpm

SUB SPINDLE:
Sub spindle X2 / Z2 / C2 axis
Max. chucking diameter 32 mm
Drive power 3.7 kW
Max. sub spindle speed 7,000 rpm
Backworking tools
Drilling tools
(4-station tool holder) 4 tools (Ø 22 mm sleeve)
Drive unit (standard) 4 tools (ER16)

Options:

Chip Conveyor

Description:

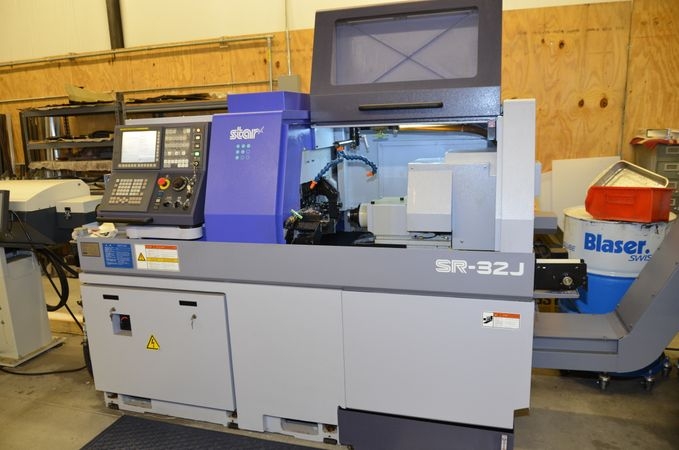

Pre-owned STAR SR32J 2013 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in New Mexico. This STAR CNC Lathe is available for a limited time. Get a quote today on this SR32J before it's gone.
