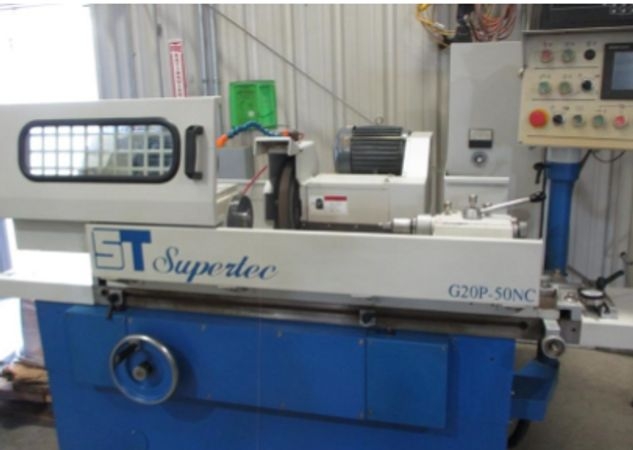

Used SUPERTEC G20P50NC Grinding
Pre-owned SUPERTEC G20P50NC 2012 Grinding for only $24,500. This Grinding has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in GA. This SUPERTEC Grinding is the only one in stock and available for a limited time. Get a quote today on this G20P50NC before it's gone.
Specifications:
Capacity: 8" x 16"
Swing over table: 8"
Distance between centers: 16"
Max. grinding diameter: 8"
Max. load held between centers: 110 Lbs.
Diameter x width x bore: 14" x 1" - 1/2" x 5"
Grinding wheel speed: 1960 RPM
Swivel angle: +/- 8°
Automatic infeed increment: 0.0001" - 0.0999"
Infeed travel: 6-1/3"
Hand feed travel: 6-1/3"
Hand wheel per graduation: 0.0002"
Hand wheel per revolution: .35"
Center taper: MT 3
Spindle speed: 14,000 RPM
Spindle type: Live & Dead
Quill travel: 1"
Traverse speed: 3" - 5.5" - 9"/min
Max. grinding bore: .95" - 2.76"
Max. grinding length: 10-3/4"
Max. chuck diameter: 4-1/3"
Wheel spindle: 5 H.P
Work head: 1/2"
Coolant: 1/8"
Dimensions (l x w x h): 85" x 54" x 73"
Weight: 4,800 Lbs.
Swing over table: 8"
Distance between centers: 16"
Max. grinding diameter: 8"
Max. load held between centers: 110 Lbs.
Diameter x width x bore: 14" x 1" - 1/2" x 5"
Grinding wheel speed: 1960 RPM
Swivel angle: +/- 8°
Automatic infeed increment: 0.0001" - 0.0999"
Infeed travel: 6-1/3"
Hand feed travel: 6-1/3"
Hand wheel per graduation: 0.0002"
Hand wheel per revolution: .35"
Center taper: MT 3
Spindle speed: 14,000 RPM
Spindle type: Live & Dead
Quill travel: 1"
Traverse speed: 3" - 5.5" - 9"/min
Max. grinding bore: .95" - 2.76"
Max. grinding length: 10-3/4"
Max. chuck diameter: 4-1/3"
Wheel spindle: 5 H.P
Work head: 1/2"
Coolant: 1/8"
Dimensions (l x w x h): 85" x 54" x 73"
Weight: 4,800 Lbs.
