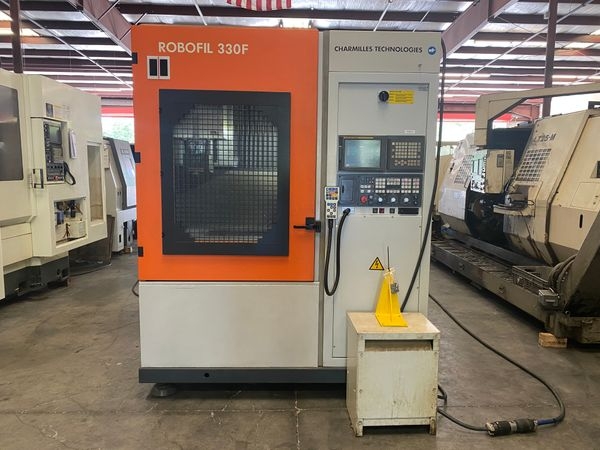

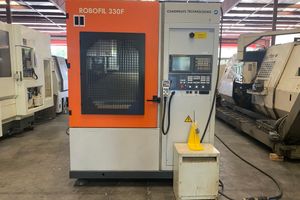

Used CHARMILLES ROBOFIL330F EDM
Pre-owned CHARMILLES ROBOFIL330F 2000 EDM. This EDM has average cutting time and is equipped with a Charmilles Fanuc control. This CNC Machine is currently located in Ohio. This CHARMILLES EDM is available for a limited time. Get a quote today on this ROBOFIL330F before it's gone.
Specs:
X/Y/Z Travels: 15.75" x 11.81" x 15.75"
U/V Travel: 19.68" / 15.75"
Taper Angle / Height: +/-30 Deg @ 15.75"Z
Maximum Part Dimensions: 35.4" x 23.6" x 15.75"
Maximum Workpiece Weight: 2,200 Lbs
Speed of Axis Movement: 35"/Min
Generator Type: Double Source Isopulse
Drive Type: Precision Ballscrew
Drive Positioning System: Glass Scales (1 Micron)
Controller: Fanuc 18iWA
Communication Interface: USB, RS 232/RS 422
Machine Dimensions: 71" W x 79"D x 89" H
Machine Weight: 7,722 Lbs
U/V Travel: 19.68" / 15.75"
Taper Angle / Height: +/-30 Deg @ 15.75"Z
Maximum Part Dimensions: 35.4" x 23.6" x 15.75"
Maximum Workpiece Weight: 2,200 Lbs
Speed of Axis Movement: 35"/Min
Generator Type: Double Source Isopulse
Drive Type: Precision Ballscrew
Drive Positioning System: Glass Scales (1 Micron)
Controller: Fanuc 18iWA
Communication Interface: USB, RS 232/RS 422
Machine Dimensions: 71" W x 79"D x 89" H
Machine Weight: 7,722 Lbs
Options:
Charmilles Fanuc
Type: CNC Wire
Type: CNC Wire
Owner:
Chris (Machine Shop in FL)
