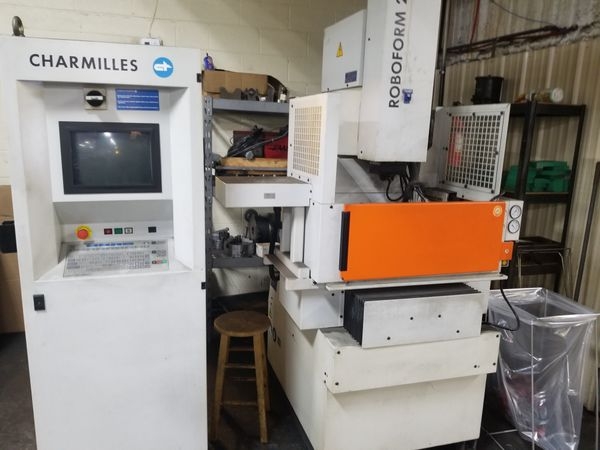

Used CHARMILLES ROBOFORM22 EDM
Pre-owned CHARMILLES ROBOFORM22 2002 EDM for only $24,500. This EDM has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in TN. This CHARMILLES EDM is the only one in stock and available for a limited time. Get a quote today on this ROBOFORM22 before it's gone.
Specifications:
X-Axis Travel 11.9"
Y-Axis Travel 9.8"
Z-Axis Travel 9.8"
Control Charmilles Expert
Tool Changer Shuttle
Power Source 32 Amp
C-Axis Yes
Chuck Erowa
Power Requirement 380/3/60
Glass Scale Feedback XYZC
Max Table Load 440 lbs
Approx Dimensions (LxWxH) 80" X 52" X 92"
Approx Machine Weight 2,000 lbs
Y-Axis Travel 9.8"
Z-Axis Travel 9.8"
Control Charmilles Expert
Tool Changer Shuttle
Power Source 32 Amp
C-Axis Yes
Chuck Erowa
Power Requirement 380/3/60
Glass Scale Feedback XYZC
Max Table Load 440 lbs
Approx Dimensions (LxWxH) 80" X 52" X 92"
Approx Machine Weight 2,000 lbs
Equipped With:
Type: CNC Sinker
Price:
$24,500
Owner:
Paul (Machine Shop in USA)
