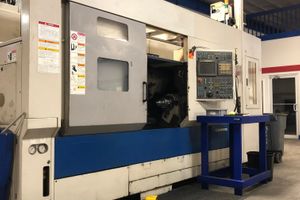

Used DAEWOO PUMA 2000SY CNC Lathe
Pre-owned DAEWOO PUMA 2000SY 2005 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc 18T control. This CNC Machine is currently located in Florida. This DAEWOO CNC Lathe is available for a limited time. Get a quote today on this PUMA 2000SY before it's gone.
Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30/20 HP
X Axis Travel: 10.2"
Z Axis Travel: 23.2"
Rapid Rate Z Axis: 2,432 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,520 IPM
Max Turning Dia: 15.98"
Max Turning Length: 23.6"
Max Swing: 30.7"
Y Axis Travel 4.72"+/- 2.00"
C Axis Spindle Movement .001 Degree
B Axis Travel (Sub Spindle) 31.89"
Sub Spindle Speed 4,000 RPM
Sub Spindle Motor 7.5 HP
Sub Spindle Nose/Bore A2-5/1.77"
Spindle Motor 20 HP
Rotary Tool Speed / Motor HP 5,000 RPM/ 5 HP
Dimensions: 125” x 74” x 84
Weight: 13,000 LBS
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30/20 HP
X Axis Travel: 10.2"
Z Axis Travel: 23.2"
Rapid Rate Z Axis: 2,432 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,520 IPM
Max Turning Dia: 15.98"
Max Turning Length: 23.6"
Max Swing: 30.7"
Y Axis Travel 4.72"+/- 2.00"
C Axis Spindle Movement .001 Degree
B Axis Travel (Sub Spindle) 31.89"
Sub Spindle Speed 4,000 RPM
Sub Spindle Motor 7.5 HP
Sub Spindle Nose/Bore A2-5/1.77"
Spindle Motor 20 HP
Rotary Tool Speed / Motor HP 5,000 RPM/ 5 HP
Dimensions: 125” x 74” x 84
Weight: 13,000 LBS
Options:
Fanuc 18T
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Y Axis
5 Axis
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Y Axis
5 Axis
Owner:
Greg (Machine Shop in USA)
