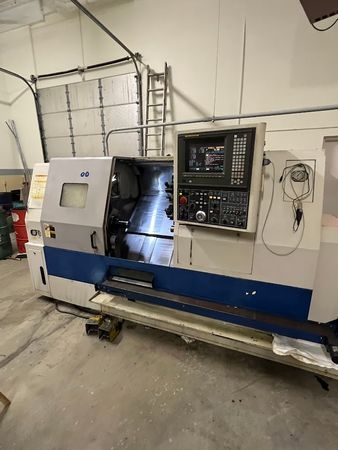

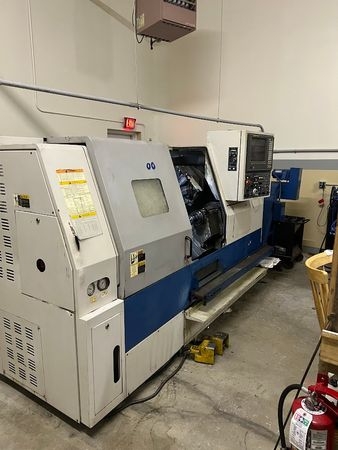

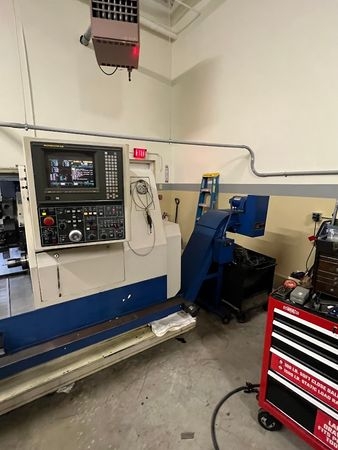

Reserve Met: 1999 DAEWOO PUMA 200LMSA #7421

Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 10.2"
Z Axis Travel: 23"
Rapid Rate Z Axis: 2,432 IPM

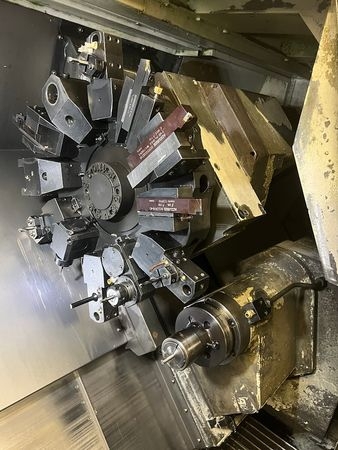

Turret Tools: 12 Station
Rapid Rate X Axis: 1,520 IPM
Max Turning Dia: 15.98"
Max Turning Length: 23.6"
Max Swing: 30.7"
Y Axis Travel 4.72"+/- 2.00"
C Axis Spindle Movement .001 Degree
B Axis Travel (Sub Spindle) 31.89"
Sub Spindle Speed 4,000 RPM
Sub Spindle Motor 7.5 HP
Sub Spindle Nose/Bore A2-5/1.77"
Spindle Motor 20 HP
Rotary Tool Speed / Motor HP 5,000 RPM/ 5 HP
Dimensions: 122" x 67" x 74"
Weight: 9,500 LBS

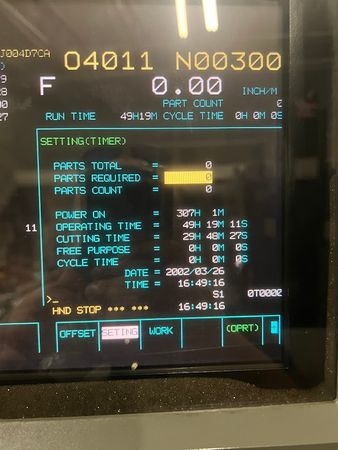

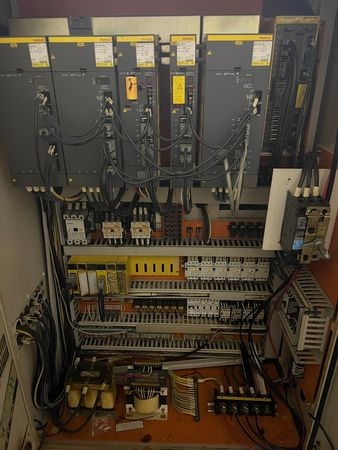

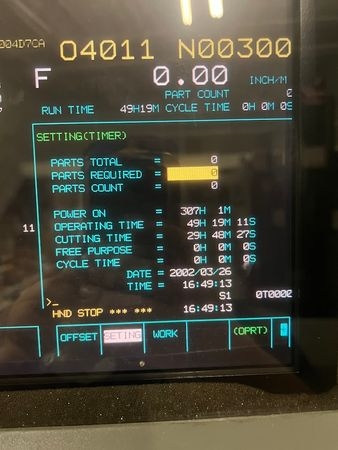

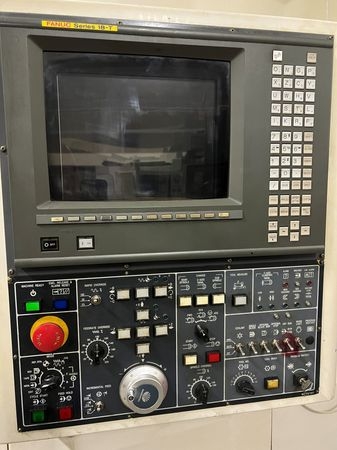

Fanuc 18T
Chip Conveyor
Tool Presetter

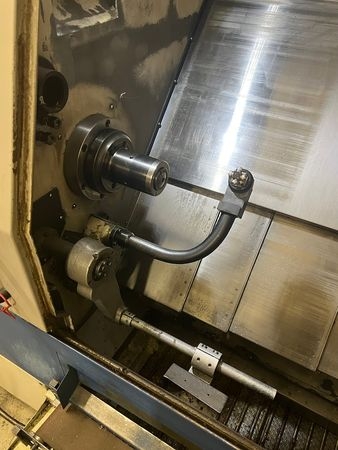

Parts Catcher
Live Tooling

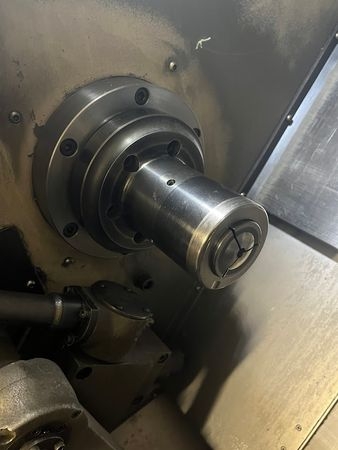

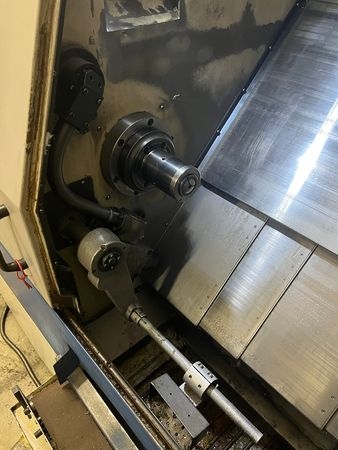

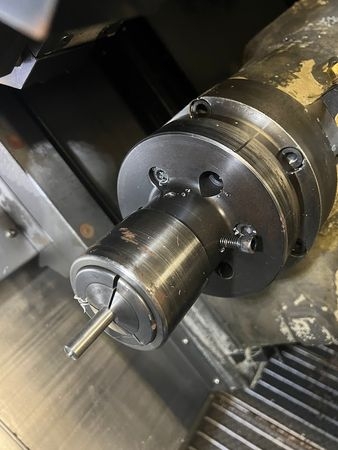

Sub Spindle
5 Axis
Kitagawa 3 Jaw Chuck

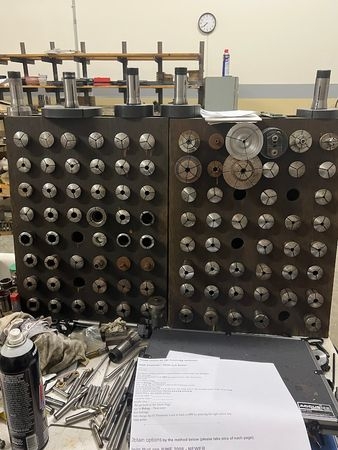

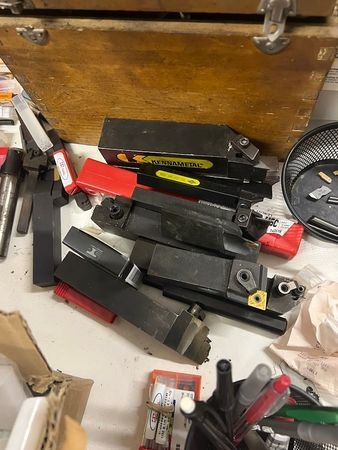

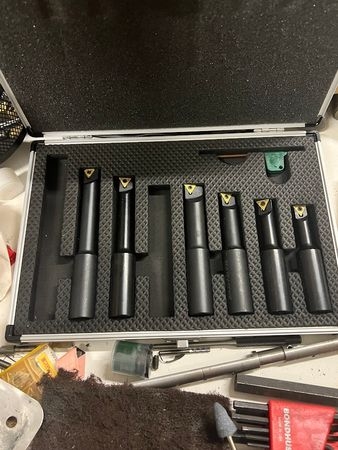

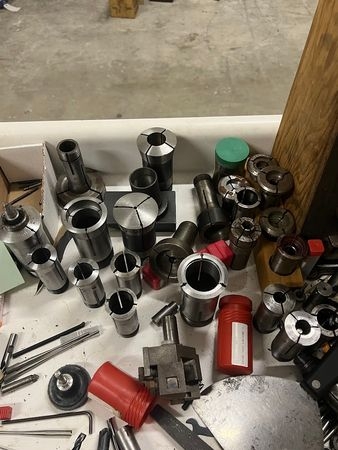

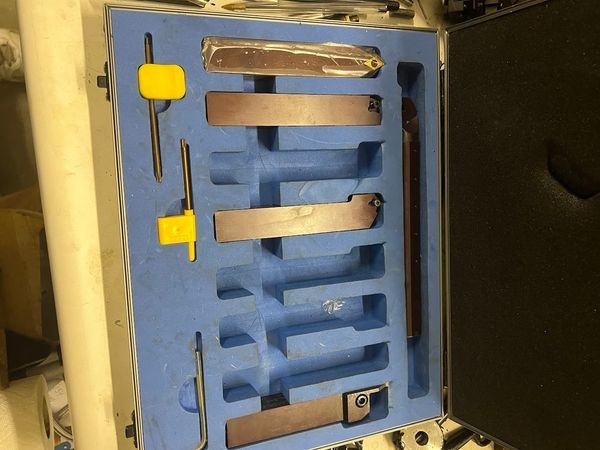

All Tooling Inlcuded
Bar Feed Interface
