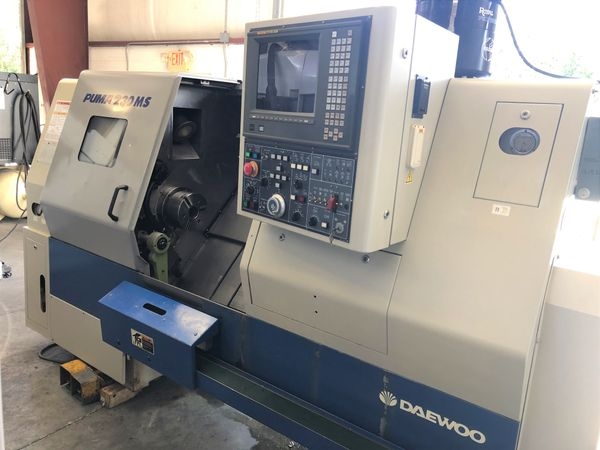

Pre-owned DAEWOO PUMA 230MS 1999 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc 18T control. This CNC Machine is currently located in Florida. This DAEWOO CNC Lathe is available for a limited time. Get a quote today on this PUMA 230MS before it's gone.
Notify Me:
Specs:
Bar Capacity: 2.5"
Chuck Size: 8"
Sub Spindle:: 5"
Sub Spindle Speed:: 6,000RPM
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 9"
Z Axis Travel: 22.8"
C Axis: 360 Deg (.0001)
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11.4"
Max Turning Length: 22.9"
Max Swing: 21.7"
Dimensions: 130" x 67" x 72"
Weight: 9,569 LBS
Chuck Size: 8"
Sub Spindle:: 5"
Sub Spindle Speed:: 6,000RPM
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 9"
Z Axis Travel: 22.8"
C Axis: 360 Deg (.0001)
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11.4"
Max Turning Length: 22.9"
Max Swing: 21.7"
Dimensions: 130" x 67" x 72"
Weight: 9,569 LBS
Options:
Fanuc 18T
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
