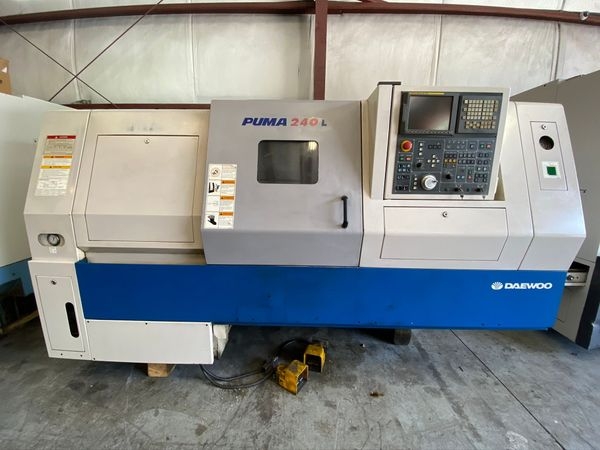

Pre-owned DAEWOO PUMA 240L 2004 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc 21i-TB control. This CNC Machine is currently located in Texas. This DAEWOO CNC Lathe is available for a limited time. Get a quote today on this PUMA 240L before it's gone.
Notify Me:
Specs:
Bar Capacity: 3.03"
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 25 HP
X Axis Travel: 14"
Z Axis Travel: 24"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 16.5"
Max Turning Length: 23.6"
Max Swing: 22.4"
Dimensions: 133" x 65" x 68"
Weight: 9,470 LBS
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 25 HP
X Axis Travel: 14"
Z Axis Travel: 24"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 16.5"
Max Turning Length: 23.6"
Max Swing: 22.4"
Dimensions: 133" x 65" x 68"
Weight: 9,470 LBS
Options:
Fanuc 21i-TB
Chip Conveyor
Tool Presetter
Tailstock
Chip Conveyor
Tool Presetter
Tailstock
