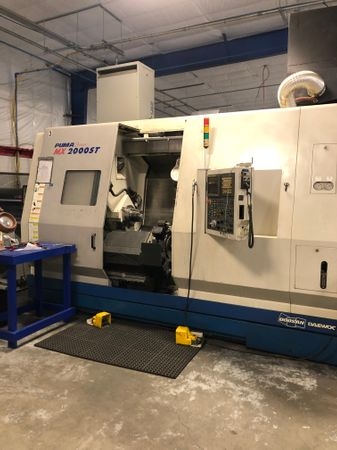

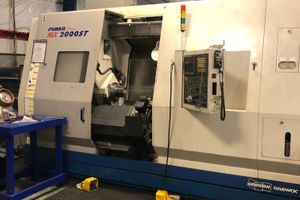

Pre-owned DAEWOO PUMA MX2000ST 2005 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc 18TM control. This CNC Machine is currently located in Florida. This DAEWOO CNC Lathe is available for a limited time. Get a quote today on this PUMA MX2000ST before it's gone.
Notify Me:
Specs:
Bar Capacity: 2.6"
Chuck Size: Collet Chucks
Spindle Speed: 5,000 RPM Both
Spindle Motor: 25 HP
X Axis Travel: 21.85"
Z Axis Travel: 43.11"
Rapid Rate Z Axis: 1,187 IPM
Turret Tools: 12 Lower Station
Rapid Rate X Axis: 1,187 IPM
Max Turning Dia: 21.65"
Max Turning Length: 40"
Max Swing: 29.5"
X1 axis travel: 21.85"
X2 axis travel: 7.48"
Z1 axis travel: 43.11"
Y axis travel: 6.29"
A axis travel: 41.89"
C1/C2 axis travel: 360 deg .001
B Axis: 240 deg
Dimensions: 138" x 94" x 92"
Weight: 18,000 LBS
Chuck Size: Collet Chucks
Spindle Speed: 5,000 RPM Both
Spindle Motor: 25 HP
X Axis Travel: 21.85"
Z Axis Travel: 43.11"
Rapid Rate Z Axis: 1,187 IPM
Turret Tools: 12 Lower Station
Rapid Rate X Axis: 1,187 IPM
Max Turning Dia: 21.65"
Max Turning Length: 40"
Max Swing: 29.5"
X1 axis travel: 21.85"
X2 axis travel: 7.48"
Z1 axis travel: 43.11"
Y axis travel: 6.29"
A axis travel: 41.89"
C1/C2 axis travel: 360 deg .001
B Axis: 240 deg
Dimensions: 138" x 94" x 92"
Weight: 18,000 LBS
Options:
Fanuc 18TM
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Includes transformer (as shown in pics)
Includes Mist collector (as shown in pics)
Includes Bolt on Holders for lower turret (list)
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Includes transformer (as shown in pics)
Includes Mist collector (as shown in pics)
Includes Bolt on Holders for lower turret (list)
